RYBS ELECTRONICS, INC.

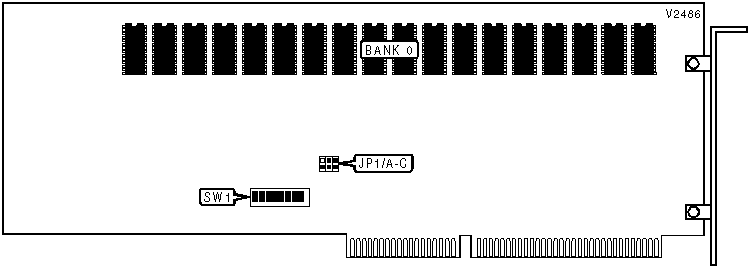

HICARDAT
|
Card Type |
Memory card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
512KB DRAM |
|
I/O Options |
None |
|
Data Bus |
16-bit ISA |
|
DRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(18) 256K x 1 |
|
HICARDAT SPEED SELECT | |||
|
Speed |
JP1/A |
JP1/B |
JP1/C |
|
60ns |
Closed |
Open |
Open |
|
80ns |
Open |
Closed |
Open |
|
100ns |
Open |
Open |
Closed |
|
BASE I/O ADDRESS SELECTION | ||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
300h |
On |
Off |
Off |
On |
On |
On |
On |
On |
|
310h |
On |
Off |
Off |
On |
On |
On |
Off |
On |
|
700h |
Off |
Off |
Off |
On |
On |
On |
On |
On |
|
710h |
Off |
Off |
Off |
On |
On |
On |
Off |
On |
