ROLAND CORPORATION
GS SOUND CARD SCC-1
|
Card Type |
Sound card |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Audio out (2), headphone jack, mini-DIN connector (2) |
|
Maximum DRAM |
N/A |
|

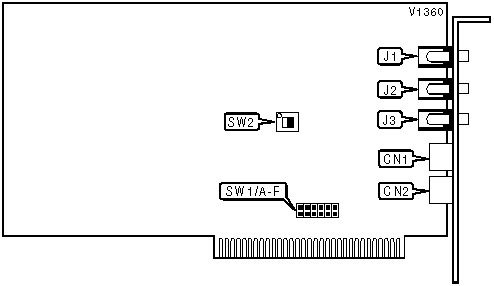

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Mini-DIN connector |
CN1 |
Left audio jack |
J2 |
|
Mini-DIN connector |
CN2 |
Right audio jack |
J3 |
|
Headphone jack |
J1 | ||
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
SW2/1 |
SW2/2 | |
| » |
334h |
Off |
On |
|
330h |
Off |
Off | |
|
332h |
On |
Off | |
|
336h |
On |
On | |
|
INTERRUPT SELECTION | |||||||
|
IRQ |
SW1/A |
SW1/B |
SW1/C |
SW1/D |
SW1/E |
SW1/F | |
| » |
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed | |
