Card Type	Waveform Synthesizer
Chipset/Controller	Unidentified
I/O Options	Trigger/gate signal inputs
Maximum DRAM	N/A

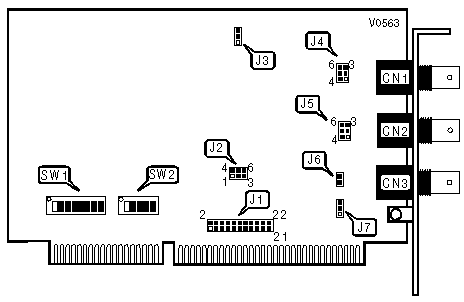

CONNECTIONS
Purpose	Location	Purpose	Location
Sine wave output	CN1	Trigger/gate input	CN3
TTL square wave/time mark output	CN2

INTERRUPT SELECT
IRQ		J1
»	IRQ5	Pins 7 & 8 closed
	IRQ2	Pins 1 & 2 closed
	IRQ3	Pins 3 & 4 closed
	IRQ4	Pins 5 & 6 closed
	IRQ6	Pins 9 & 10 closed
	IRQ7	Pins 11 & 12 closed
	IRQ10	Pins 13 & 14 closed
	IRQ11	Pins 15 & 16 closed
	IRQ12	Pins 17 & 18 closed
	IRQ14	Pins 19 & 20 closed
	IRQ15	Pins 21 & 22 closed
	Disabled	All pins open

8254 CLOCK CONFIGURATION
Setting	J2
10Mhz timer	Pins 1 & 2, 4 & 5 closed
Cycle counter	Pins 2 & 3, 5 & 6 closed

8254 CLOCK OUTPUT SPEED
Output	J7
Direct	Pins 1 & 2 closed
Output/2	Pins 2 & 3 closed
Note: Clock input can not exceed 10Mhz.

SINE WAVE OUTPUT AMPLITUDE
Setting	J3
+ 5V	Pins 1 & 2 closed
+ 1V	Pins 2 & 3 closed

SINE WAVE OUTPUT IMPEDANCE
Output	J4
50ohm	Pins 1 & 2, 4 & 5 closed
75ohm	Pins 1 & 2, 5 & 6 closed
100ohm	Pins 1 & 2 closed
Unfiltered	Pins 2 & 3, 5 & 6 closed

CN2 OUTPUT OPTIONS
Setting	J5
TTL output	Pins 3 & 6 closed
Clock output	Pins 2 & 5 closed
Time mark output	Pins 1 & 4 closed

CN3 INPUT OPTIONS
Setting	J6
External trigger input	closed
Gate signal input	open

I/O ADDRESS CONFIGURATION
Address		SW1	SW2
»	300h	1, 2, 3, 4, 5 & 6 on	1, 2, 3, 4 & 5 on
	240h	1, 2, 3, 4, 5, 6 & 8 on	1, 3, 4 & 5 on
	6FC8h	1 & 4 on	3 & 4 on
Note: The address range for the DDS-100 is from 0 to FFFFh. The switches are a binary representation of the addresses. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW1/1=8, SW1/2=4, SW1/3=2, SW1/4=1, SW1/5=8, SW1/6=4, SW1/7=2, SW1/8=1, SW2/1=8, SW2/2=4, SW2/3=2, SW2/4=1, SW2/5=8. The DDS-100 requires eight consecutive address locations.
