Card Type	Waveform Synthesizer
Chipset/Controller	Unidentified
I/O Options	Analog/Clock/Digital/Strobe I/O ports
Maximum DRAM	N/A

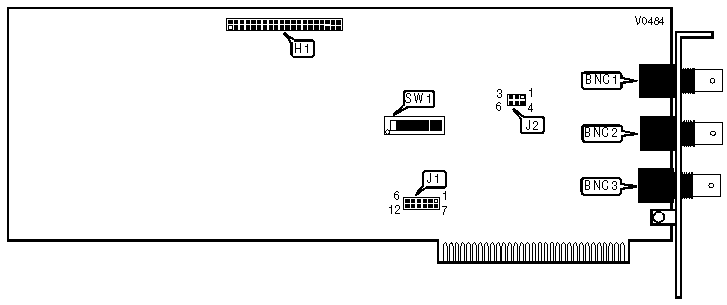

CONNECTIONS
Purpose	Location	Purpose	Location
Analog output	BNC1	Clock/Trigger input	BNC3
Strobe/Clock output	BNC2	Digital output port	H1

ADDRESS SELECT
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
2E0h	On	Off	Off	Off	On	N/A	N/A	On
330h	Off	On	On	Off	Off	N/A	N/A	On
350h	Off	On	Off	On	Off	N/A	N/A	Off

INTERRUPT SELECT
IRQ		J1
»	Disabled	Pins 1 & 2 closed
	IRQ2	Pins 6 & 12 closed
	IRQ3	Pins 5 & 11 closed
	IRQ4	Pins 4 & 10 closed
	IRQ5	Pins 3 & 9 closed
	IRQ6	Pins 2 & 8 closed
	IRQ7	Pins 1 & 7 closed

I/O CONFIGURATION
Port		Function	J1
»	BNC2	Strobe output	Pins 2 & 3 closed
	BNC2	Clock output	Pins 3 & 4 closed
»	BNC3	External clock input	Pins 7 & 8 closed
	BNC3	External trigger input	Pins 6 & 7 closed
