Card Type	Serial controller
Chip Set	Unidentified
I/O Options	Serial ports (2 RS-422/485)
Data Bus	16-bit ISA (EISA compatible)
Card Size	Full-height, Half-length card

CONNECTIONS
Function	Label	Function	Label

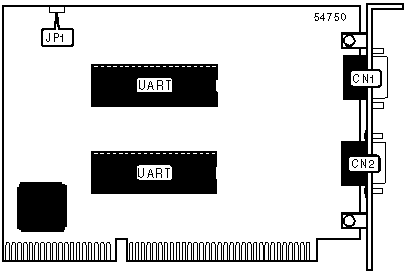

Serial Port 1	CN1	Serial Port 2	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CAP address 0x180 enabled	JP1	Open
	CAP address 0x180 disabled	JP1	Closed
Note: When disabled CAP address is forced to 0xA700

MISCELLANEOUS TECHNICAL NOTES

Note: Base I/O address and IRQ settings are configured via software written to EEPROM. Normally the default settings should be used unless another device cannot be configured to an address other than 0x180. If JP1 is shorted this will force the Configuration Access Port (CAP) to address 0xA700.
