Card Type	Sound card
Chip Set	Yamaha
Maximum Onboard Memory	2MB
I/O Options	CD-ROM interface, game port, IDE interface, waveblaster connector, line in, line out, microphone, speaker, antenna
Data Bus	16-bit ISA
Card Size	Full-length, full-height card

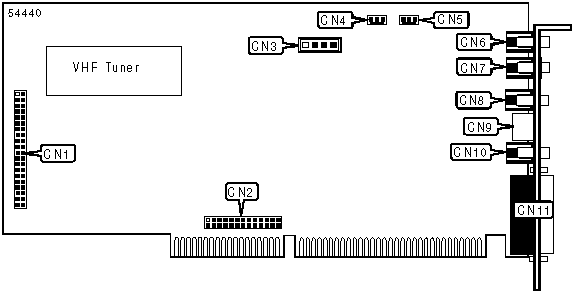

CONNECTIONS
Function	Label	Function	Label
IDE interface	CN1	Antenna input	CN7
Waveblaster connector	CN2	Line in connector	CN8
CD-ROM audio interface	CN3	MIDI extender box connector	CN9
Auxiliary connector	CN4	Line out connector	CN10
Line in connector - internal	CN5	MIDI/joystick connector	CN11
Microphone input	CN6
