MIRO COMPUTER PRODUCTS, INC.

MIROSOUND PCM12 (VER. 1)

Card Type

Sound card

Chip Set

Yamaha

Maximum Onboard Memory

2MB

I/O Options

CD-ROM interface (3), game port, IDE interface, waveblaster connector, line in, line out, microphone, MIDI connector

Data Bus

16-bit ISA

Card Size

Full-length, full-height card

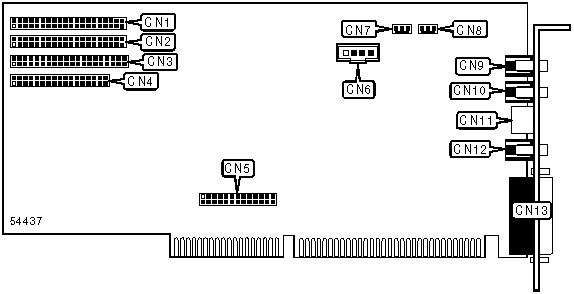

CONNECTIONS

Function

Label

Function

Label

CD-ROM interface (Panasonic)

CN1

Line in connector - internal

CN8

CD-ROM interface (Mitsumi)

CN2

Microphone input

CN9

Enhanced IDE interface

CN3

Line in connector

CN10

CD-ROM interface (Sony)

CN4

MIDI extender connector

CN11

Waveblaster connector

CN5

Line out connector

CN12

CD-ROM connector (Sony)

CN6

MIDI/joystick connector

CN13

Auxiliary connector

CN7
