Card Type	Audio daughtercard
Chip Set Maximum Onboard Memory	Unidentified 2MB on Wavebooster, 4MB on Wavebooster/4 & Wavebooster 4/FX

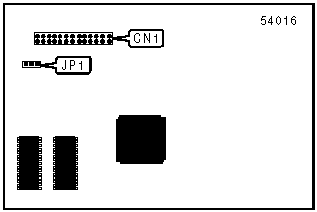

CONNECTIONS
Function	Label
Daughtercard connector to sound card	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Unidentified

MISCELLANEOUS TECHNICAL NOTES

Only the Wavebooster 4/FX has reverb, chorus, and built-in digital effects. For use with compatible Orchid sound cards. If using the Orchid SoundDrive 16 card, select the external MIDI option to hear the Wavebooster’s wavetable synthesis when playing MIDI files, or select the FM synthesis to hear the FM synthesis on the SoundDrive. The SoundWave 32+ SCSI connects as a line in device and the on board synthesizer may be used simultaneously with the Wavebooster’s synthesizer. Using the Wavebooster and Soundwave 32+ SCSI control panels, MIDI data may be put through 16 channels to produce 56 simultaneous notes.
