ORCHID TECHNOLOGY

SOUNDWAVE 32PRO, GAMEWAVE 32PLUS

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

2MB

I/O Options

Speaker in, game/MIDI port, line in, line out, microphone jack, CD-ROM interface (2), audio in - CD-ROM (2)

Data Bus

16-bit ISA

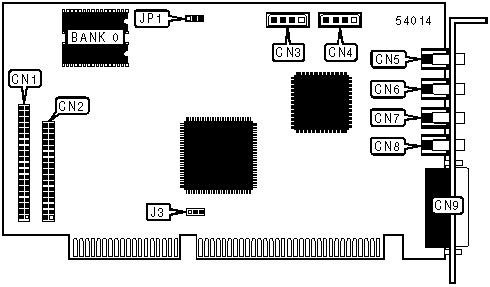

CONNECTIONS

Function

Label

Function

Label

CD-ROM interface (Mitsumi)

CN1

Line out

CN6

CD-ROM interface (Sony)

CN2

Line in

CN7

Audio in - CD-ROM

CN3

Microphone jack

CN8

Audio in - CD-ROM

CN4

Game/MIDI port

CN9

Speaker jack

CN5



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

1MB Wavetable enabled

JP1

Pins 2 & 3 closed



2MB Wavetable enabled

JP1

Pins 1 & 2 closed

MEMORY CONFIGURATION

Size

Bank 0

1MB

(2) 512KB

2MB

(2) 1MB

BASE I/O ADDRESS SELECTION

Setting

Label

Position

»

220h

J3

Pins 2 & 3 closed



240h

J3

Pins 1 & 2 closed
