MAXSPEED
SGX-2, SGX-4
|
Card Type |
Multi-I/O card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
UTP ports(4) |
|
Data Bus |
16-bit ISA |
|

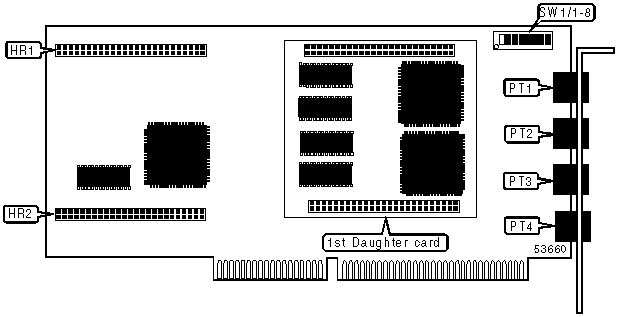

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header connector for 2 nd daughter card |
HR1 |
RJ-45 connector - port 2 |
PT2 |
|
Header connector for 2 nd daughter card |
HR2 |
RJ-45 connector - port 3 |
PT3 |
|
RJ-45 connector - port 1 |
PT1 |
RJ-45 connector - port 4 |
PT4 |
|
Note: Ports 3 & 4 are used with 2 nd daughter card. See miscellaneous technical note. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
SGX is not console |
SW1/6 |
Off |
|
SGX is console |
SW1/6 |
On | |
| » |
Factory configured - do not alter |
SW1/7 |
Off |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
|
CONTROLLER NUMBER SELECTION | ||||||
|
Controller Number |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 | |
| » |
0 |
Off |
Off |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
Off |
Off | |
|
2 |
Off |
On |
Off |
Off |
Off | |
|
3 |
On |
On |
Off |
Off |
Off | |
|
4 |
Off |
Off |
On |
Off |
Off | |
|
5 |
On |
Off |
On |
Off |
Off | |
|
6 |
Off |
On |
On |
Off |
Off | |
|
7 |
On |
On |
On |
Off |
Off | |
|
8 |
Off |
Off |
Off |
On |
Off | |
|
9 |
On |
Off |
Off |
On |
Off | |
|
10 |
Off |
On |
Off |
On |
Off | |
|
11 |
On |
On |
Off |
On |
Off | |
|
12 |
Off |
Off |
On |
On |
Off | |
|
13 |
On |
Off |
On |
On |
Off | |
|
14 |
Off |
On |
On |
On |
Off | |
|
15 |
On |
On |
On |
On |
Off | |
|
16 |
Off |
Off |
Off |
Off |
On | |
|
17 |
On |
Off |
Off |
Off |
On | |
|
18 |
Off |
On |
Off |
Off |
On | |
|
19 |
On |
On |
Off |
Off |
On | |
|
20 |
Off |
Off |
On |
Off |
On | |
|
21 |
On |
Off |
On |
Off |
On | |
|
22 |
Off |
Off |
On |
Off |
On | |
|
23 |
On |
On |
On |
Off |
On | |
|
24 |
Off |
Off |
Off |
On |
On | |
|
25 |
On |
Off |
Off |
On |
On | |
|
26 |
Off |
On |
Off |
On |
On | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The SGX-2 comes with one daughter card already installed. To upgrade to an SGX-4 add a second daughter card, facing in the same direction as the first. Then remove the caps from ports 3 and 4. |
|

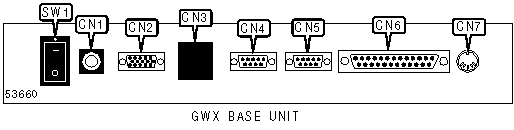

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Power connector |
CN1 |
Serial port |
CN5 |
|
Video connector |
CN2 |
Printer connector |
CN6 |
|
RJ-45 connector |
CN3 |
Keyboard connector |
CN7 |
|
Serial port |
CN4 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Power on |
SW1 |
On |
|
Power off |
SW1 |
Off |
