Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	N/A
I/O Options	CD ROM Audio in, IDE CD-ROM interface, Mitsumi CD-ROM interface, Line in, Line out, Microphone in, MIDI/Game port, Speaker out
Data Bus	16-bit ISA

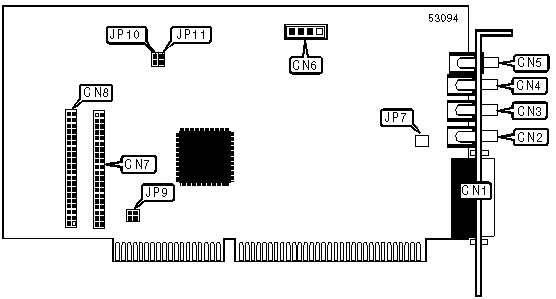

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	CD-ROM audio	CN6
Microphone in	CN2	Mitsumi CD-ROM interface	CN7
Line in	CN3	IDE CD-ROM interface	CN8
Line out	CN4
Speaker out	CN5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Powered microphone is in use	JP7	Closed
	Dynamic microphone is in use	JP7	Open
»	CD-ROM termination enable/disable	JP9	Unidentified
Note: JP9 is CD-ROM termination jumper. Exact setting is unidentified. Size and orientation of JP7 is unidentified.

OPL4 DAUGHTER CARD CONFIGURATION
Setting		JP10	JP11
»	Not installed	Closed	Closed
	Installed	Open	Open
