Card Type	Sound card
Chipset Controller	Unidentified
I/O Options	CD-ROM audio, CD-ROM interface, game/MIDI port, line in, line out, microphone in, Speaker out
Maximum DRAM	N/A

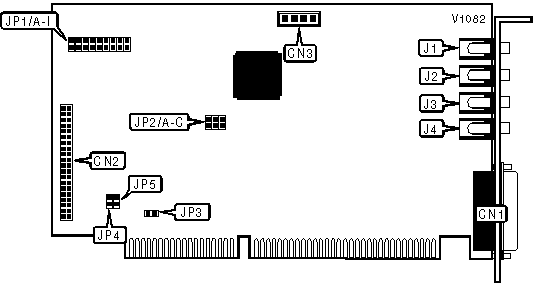

CONNECTIONS
Purpose	Location	Purpose	Location
Game/MIDI port	CN1	Line out	J2
CD-ROM interface	CN2	Line in	J3
CD - audio in	CN3	Mic in	J4
Speaker out	J1

I/O PORT ADDRESS SELECTION
Address		JP4	JP5
»	530h	Closed	Closed
	604h	Open	Closed
	E80h	Closed	Open
	F40h	Open	Open

GAME PORT I/O ADDRESS SELECTION
Address		JP1/A
»	201h	Open
	200h - 207h	Closed

MIDI PORT I/O ADDRESS
Address		JP1/B	JP1/C
»	330h - 331h	Open	Open
	300h - 301h	Closed	Closed
	310h - 311h	Open	Closed
	320h - 321h	Closed	Open

MIDI PORT CONFIGURATION
Setting		JP1/D
»	Enabled	Open
	Disabled	Closed

SOUND BLASTER I/O PORT ADDRESS SELECTION
Address		JP1/E	JP1/F	JP1/G
»	220h	Open	Open	Open
	220h	Closed	Open	Closed
	210h	Closed	Closed	Open
	230h	Closed	Open	Open
	240h	Open	Closed	Closed
	250h	Open	Closed	Open
	260h	Open	Open	Closed

FM MODE CONFIGURATION
Setting		JP1/H
»	Enabled	OPen
	Disabled	Closed

GAME MODE CONFIGURATION
Setting		JP1/I
»	Enabled	Open
	Disabled	Closed

CD-ROM I/O PORT ADDRESS SELECTION
Address		JP3
»	340h	Open
	320h	Closed

MIDI INTERRUPT SELECTION
IRQ		JP2/A	JP2/B	JP2/C
»	2/9	Open	Open	Closed
	5	Closed	Open	Open
	7	Open	Closed	Open
	Disabled	Open	Open	Open
Note: MIDI interrupt is used only for Panasonic & Sony CD-ROM interface.
