Card Type	Sound Card
Chipset/Controller	Analog Devices
I/O Options	CD-ROM interface (2), game port, line out, speaker jack, volume control
Maximum DRAM	N/A

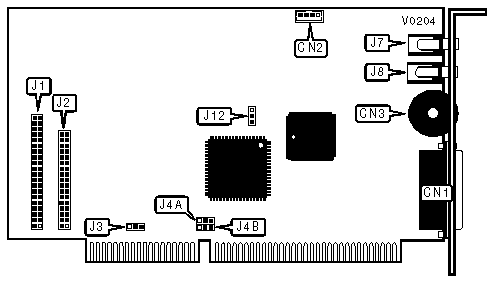

CONNECTIONS
Purpose	Location	Purpose	Location
Game port	CN1	Sony CD-ROM interface connector	J2
CD audio cable connector	CN2	Speaker jack	J7
Volume conrol	CN3	Line out	J8
Mitsumi CD-ROM interface connector	J1

I/O ADDRESS CONFIGURATION
Address		J3
»	220h	Pins 2 & 3 closed
	240h	Pins 1 & 2 closed

DMA CHANNEL SELECTION
DMA		J4A	J4B
»	I/O transfer enabled	Open	Open
	DMA 1	Pins 1 & 2 closed	Pins 1 & 2 closed
	DMA 3	Pins 2 & 3 closed	Pins 2 & 3 closed

WAVETABLE MEMORY SELECTION
Memory		J12
»	1MB	Pins 2 & 3 closed
	2MB	Pins 1 & 2 closed
