INDUSTRIAL COMPUTER SOURCE

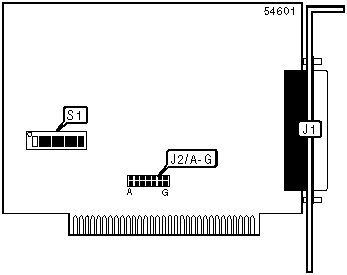

ML8-P
|
Card Type |
Analog to digital timing converter, Digital I/O card |
|
I/O Options |
37-pin serial port |
|
Data Bus |
8-bit ISA |
|
CONNECTIONS | |
|
Function |
Label |
|
37-pin serial port |
J1 |
|
IRQ SELECTION | |||||||
|
IRQ |
J2/A |
J2/B |
J2/C |
J2/D |
J2/E |
J2/F |
J2/G |
|
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
X |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
BASE I/O ADDRESS SELECTION | ||||||||
|
Setting |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
S1/6 |
S1/7 |
S1/8 |
|
000h |
On |
On |
On |
On |
On |
On |
On |
On |
|
100h |
On |
Off |
On |
On |
On |
On |
On |
On |
|
180h |
On |
Off |
Off |
On |
On |
On |
On |
On |
|
1C0h |
On |
Off |
Off |
Off |
On |
On |
On |
On |
|
1E0h |
On |
Off |
Off |
Off |
Off |
On |
On |
On |
|
1F0h |
On |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
380h |
Off |
Off |
Off |
On |
On |
On |
On |
On |
|
3C0h |
Off |
Off |
Off |
Off |
On |
On |
On |
On |
|
3E0h |
Off |
Off |
Off |
Off |
Off |
On |
On |
On |
|
3F0h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
3F8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. S1/1 is the Most Significant Bit and switch S1/8 is the Least Significant Bit. The switches have the following decimal values: S1/1=512, S1/2=256, S1/3=128, S1/4=64, S1/5=32, S1/6=16, S1/7=8, S1/8=4. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0) | ||||||||
