LABWAY CORPORATION

LABSOUND #1761

Card Type

Sound card

Chip Set

ES1688/ES968

Maximum Onboard Memory

N/A

I/O Options

CD-ROM audio (2), CD-ROM interface, daughter board connector, game/MIDI port, line in (2), line out (2), microphone in (2), speaker out (2), wavetable

Data Bus

16-bit ISA

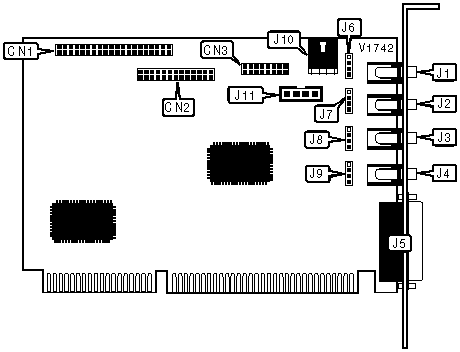

CONNECTIONS

Function

Label

Function

Label

IDE CD-ROM interface

CN1

Game/MIDI port

J5

Wavetable

CN2

Speaker out

J6

Daughter board connector

CN3

Line out

J7

Speaker out

J1

Line in

J8

Line out

J2

Mic in

J9

Line in

J3

ATAPI IDE CD - audio in

J10

Mic in

J4

IDE CD - audio in

J11
