LABWAY CORPORATION

LABSOUND #1760

Card Type

Sound card

Chip Set

ES1688/ES968

Maximum Onboard Memory

N/A

I/O Options

CD-ROM audio (2), CD-ROM interface, game/MIDI port, line in (2), line out (2), microphone in (2), speaker out (2), wavetable

Data Bus

16-bit ISA

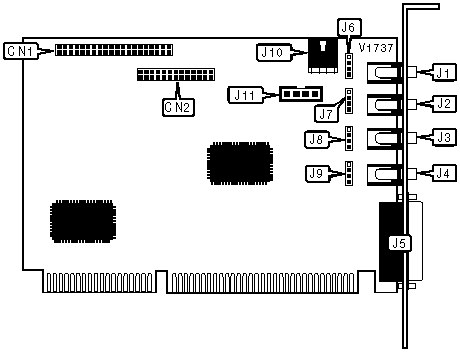

CONNECTIONS

Function

Label

Function

Label

IDE CD-ROM interface

CN1

Speaker out

J6

Wavetable

CN2

Line out

J7

Speaker out

J1

Line in

J8

Line out

J2

Mic in

J9

Line in

J3

ATAPI IDE CD - audio in

J10

Mic in

J4

IDE CD - audio in

J11

Game/MIDI port

J5
