LASONIC ELECTRONICS CORPORATION

LSO-320

Card Type

Sound card

Chip Set

Lxycon

Maximum Onboard Memory

N/A

I/O Options

CD-ROM audio (3), CD-ROM interface (4), game/MIDI port, line in, microphone/line out, microphone in, speaker out

Data Bus

16-bit ISA

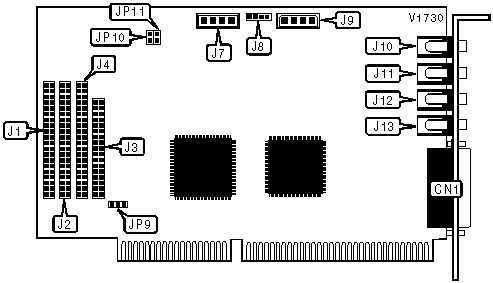

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Sony CD - audio in

J8

Panasonic CD-ROM interface

J1

Panasonic CD - audio in

J9

IDE CD-ROM interface

J2

Speaker out

J10

Sony CD-ROM interface

J3

Mic/line out

J11

Mitsumi CD-ROM interface

J4

Line in

J12

Mitsumi CD - audio in

J7

Mic in

J13

USER CONFIGURABLE SETTINGS

Setting

Label

Position

IDE, Panasonic or Sony CD-ROM interface in use

JP9/pins 1 & 2

Closed

Mitsumi CD-ROM interface in use

JP9/pins 2 & 3

Closed

OPL SELECT

Setting

JP10

JP11

OPL3

Closed

Closed

OPL4

Open

Open
