KOUWELL ELECTRONIC CORPORATION

KW-524F

Card Type

Multi I/O card

Chipset/Controller

Krueger company

I/O Options

Parallel port, serial ports (2)

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

Parallel port

CN4

Serial port 1

CN3

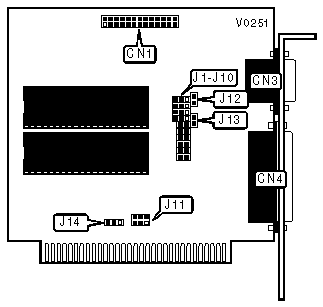

SERIAL PORT CONFIGURATION

Port 1

Port 2

J1

J2

J3

J4

J5

J6

J8

J10

»

COM1/IRQ4

COM2/IRQ3

2 & 3

2 & 3

1 & 2

Open

Open

Closed

Closed

Open



COM1/IRQ4

Disabled

Open

Open

1 & 2

Open

Open

Closed

Open

Open



Disabled

COM2/IRQ3

Open

2 & 3

Open

Open

Open

Open

Closed

Open



COM3/IRQ5

COM4/IRQ2

Open

Open

Open

1 & 2

Closed

Open

Open

Closed



COM3/IRQ5

Disabled

Open

Open

Open

1 & 2

Closed

Open

Open

Open



Disabled

COM2/IRQ4

2 & 3

Open

Open

Open

Open

Open

Open

Closed

Note: Jumpers J7, J9, J12, and J13 should be left in the open position.

Pins designated should be in the closed position.

PARALLEL PORT CONFIGURATION

LPT

J11

»

1

Pins 1 & 2 closed



2

Pins 3 & 4 closed



3

Pins 5 & 6 closed

PARALLEL PORT CONFIGURATION

IRQ

J14

»

7

Pins 1 & 2 closed



5

Pins 2 & 3 closed
