GLOBETEK, INC.
S-1007
|
Card Type |
Serial |
|
Chipset |
Startech ST16C550 |
|
I/O Options |
Serial ports (2) |
|
Data Bus |
16-bit ISA |
|

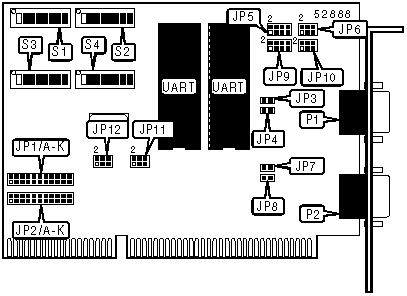

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RS-422/485 serial port 1 |
P1 |
RS-422/485 serial port 2 |
P2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Serial port 1 receive termination enabled |
JP3 |
Closed |
|
Serial port 1 receive termination disabled |
JP3 |
Open | |
| » |
Serial port 1 AUXIN termination enabled |
JP4 |
Closed |
|
Serial port 1 AUXIN termination disabled |
JP4 |
Open | |
| » |
Serial port 2 receive termination enabled |
JP7 |
Closed |
|
Serial port 2 receive termination disabled |
JP7 |
Open | |
| » |
Serial port 2 AUXIN termination enabled |
JP8 |
Closed |
|
Serial port 2 AUXIN termination disabled |
JP8 |
Open | |
| » |
Serial port 1 interrupt normal |
JP11 |
Pins 1 & 3, 2 & 4 closed |
|
Serial port 1 interrupt shared |
JP11 |
Pins 3 & 5, 4 & 6 closed | |
| » |
Serial port 2 interrupt normal |
JP12 |
Pins 1 & 3, 2 & 4 closed |
|
Serial port 2 interrupt shared |
JP12 |
Pins 3 & 5, 4 & 6 closed | |
| » |
Factory configured - do not alter |
SW2/6 |
N/A |
| » |
Factory configured - do not alter |
SW2/7 |
N/A |
| » |
Serial port 1 enabled |
SW2/8 |
On |
|
Serial port 1 disabled |
SW2/8 |
Off | |
| » |
Factory configured - do not alter |
SW4/6 |
N/A |
| » |
Factory configured - do not alter |
SW4/7 |
N/A |
| » |
Serial port 2 enabled |
SW4/8 |
On |
|
Serial port 2 disabled |
SW4/8 |
Off | |
|
SERIAL PORT 1 ADDRESS SELECTION | |||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
|
0000h |
On |
On |
On |
On |
On |
On | |
|
0008h |
On |
On |
On |
On |
On |
On | |
|
0010h |
On |
On |
On |
On |
On |
On | |
|
0018h |
On |
On |
On |
On |
On |
On | |
|
0020h |
On |
On |
On |
On |
On |
On | |
| » |
03E8h |
On |
On |
On |
On |
On |
On |
|
FFD8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFE8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFF0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFF8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
SERIAL PORT 1 ADDRESS SELECTION (CON’T) | ||||||||
|
Setting |
SW1/7 |
SW1/8 |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 | |
|
0000h |
On |
On |
On |
On |
On |
On |
On | |
|
0008h |
On |
On |
On |
On |
On |
On |
Off | |
|
0010h |
On |
On |
On |
On |
On |
Off |
On | |
|
0018h |
On |
On |
On |
On |
On |
Off |
Off | |
|
0020h |
On |
On |
On |
On |
Off |
On |
On | |
| » |
03E8h |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
FFD8h |
Off |
Off |
Off |
Off |
On |
Off |
Off | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off |
On |
On | |
|
FFE8h |
Off |
Off |
Off |
Off |
Off |
On |
Off | |
|
FFF0h |
Off |
Off |
Off |
Off |
Off |
Off |
On | |
|
FFF8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 16384 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW2/3 is the Least Significant Bit. The switches have the following decimal values: SW1/1=32768, SW1/2=16384, SW1/3=8192, SW1/4=4096, SW1/5=2048, SW1/6=1024, SW1/7=512, SW1/8=256, SW2/1=128, SW2/2=64, SW2/3=32, SW2/4=16, SW2/5=8. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||||
|
SERIAL PORT 2 ADDRESS SELECTION | |||||||
|
Setting |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
SW3/5 |
SW3/6 | |
|
0000h |
On |
On |
On |
On |
On |
On | |
|
0008h |
On |
On |
On |
On |
On |
On | |
|
0010h |
On |
On |
On |
On |
On |
On | |
|
0018h |
On |
On |
On |
On |
On |
On | |
|
0020h |
On |
On |
On |
On |
On |
On | |
| » |
02E8h |
On |
On |
On |
On |
On |
On |
|
FFD8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFE8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFF0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFF8h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
SERIAL PORT 2 ADDRESS SELECTION (CON’T) | ||||||||
|
Setting |
SW3/7 |
SW3/8 |
SW4/1 |
SW4/2 |
SW4/3 |
SW4/4 |
SW4/5 | |
|
0000h |
On |
On |
On |
On |
On |
On |
On | |
|
0008h |
On |
On |
On |
On |
On |
On |
Off | |
|
0010h |
On |
On |
On |
On |
On |
Off |
On | |
|
0018h |
On |
On |
On |
On |
On |
Off |
Off | |
|
0020h |
On |
On |
On |
On |
Off |
On |
On | |
| » |
02E8h |
Off |
On |
Off |
Off |
Off |
On |
Off |
|
FFD8h |
Off |
Off |
Off |
Off |
On |
Off |
Off | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off |
On |
On | |
|
FFE8h |
Off |
Off |
Off |
Off |
Off |
On |
Off | |
|
FFF0h |
Off |
Off |
Off |
Off |
Off |
Off |
On | |
|
FFF8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 16384 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW3/1 is the Most Significant Bit and switch SW4/3 is the Least Significant Bit. The switches have the following decimal values: SW3/1=32768, SW3/2=16384, SW3/3=8192, SW3/4=4096, SW3/5=2048, SW3/6=1024, SW3/7=512, SW3/8=256, SW4/1=128, SW4/2=64, SW4/3=32, SW4/4=16, SW4/5=8. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||||
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ5 |
Open |
Open |
Open |
Open |
Open |
|
IRQ6 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ11 |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ14 |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT 1 INTERRUPT SELECTION (CON’T) | |||||||
|
Setting |
JP1/F |
JP1/G |
JP1/H |
JP1/I |
JP1/J |
JP1/K | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Closed |
Open |
Open | |
| » |
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ6 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||||
|
Setting |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ10 |
Open |
Open |
Open |
Open |
Closed |
|
IRQ11 |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ14 |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT 2 INTERRUPT SELECTION (CON’T) | |||||||
|
Setting |
JP2/F |
JP2/G |
JP2/H |
JP2/I |
JP2/J |
JP2/K | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Closed |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT 1 DRIVER CONFIGURATION | ||
|
Setting |
JP5 | |
| » |
Driver always enabled |
Pins 2 & 4 closed |
|
Driver enabled on high DTR |
Pins 1 & 2 closed | |
|
Driver enabled on low DTR |
Pins 3 & 4 closed | |
|
Driver enabled on high RTS |
Pins 5 & 6 closed | |
|
Driver enabled on low RTS |
Pins 7 & 8 closed | |
|
SERIAL PORT 2 DRIVER CONFIGURATION | ||
|
Setting |
JP9 | |
| » |
Driver always enabled |
Pins 2 & 4 closed |
|
Driver enabled on high DTR |
Pins 1 & 2 closed | |
|
Driver enabled on low DTR |
Pins 3 & 4 closed | |
|
Driver enabled on high RTS |
Pins 5 & 6 closed | |
|
Driver enabled on low RTS |
Pins 7 & 8 closed | |
|
SERIAL PORT 1 SIGNAL SELECTION | ||
|
Setting |
JP6 | |
| » |
RTS looped to CTS, AUXIN looped to AUXOUT, clock in looped to clock out |
Pins 1 & 2, 3 & 4, 5 & 6 closed |
|
AUXOUT is RTS signal, AUXIN is CTS signal, clock in looped to clock out |
Pins 1 & 3, 2 & 4, 5 & 6 closed | |
|
AUXOUT is clock out, AUXIN is clock in, RTS looped to CTS |
Pins 1 & 2, 3 & 5, 4 & 6 closed | |
|
SERIAL PORT 2 SIGNAL SELECTION | ||
|
Setting |
JP10 | |
| » |
RTS looped to CTS, AUXIN looped to AUXOUT, clock in looped to clock out |
Pins 1 & 2, 3 & 4, 5 & 6 closed |
|
AUXOUT is RTS signal, AUXIN is CTS signal, clock in looped to clock out |
Pins 1 & 3, 2 & 4, 5 & 6 closed | |
|
AUXOUT is clock out, AUXIN is clock in, RTS looped to CTS |
Pins 1 & 2, 3 & 5, 4 & 6 closed | |
