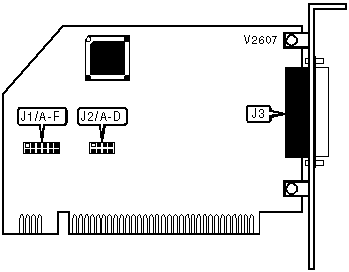

FARPOINT COMMUNICATIONS
F/PORT
|
Card Type |
Parallel |
|
Chip Set |
Xilinx XC2064-70 |
|
I/O Options |
Parallel port |
|
Data Bus |
8/16-bit ISA |
|
CONNECTIONS | |
|
Function |
Label |
|
Parallel port |
J3 |
|
INTERRUPT | ||||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
IRQ7 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ10 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ11 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ12 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
PARALLEL PORT ADDRESS | ||||
|
Setting |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
|
278h |
Open |
Closed |
Open |
Open |
|
378h |
Closed |
Open |
Open |
Open |
|
280h |
Open |
Open |
Open |
Closed |
|
290h |
Open |
Open |
Closed |
Open |
