EQUINOX SYSTEMS, INC.
MEGAPLEX/2 MCC/2 24X4, MEGAPLEX/RS MCC/RS 24X4
Card Type |
Cluster controller |
Chip Set |
Unidentified |
I/O Options |
Cluster ports (4) |
Data Bus |
MCA |

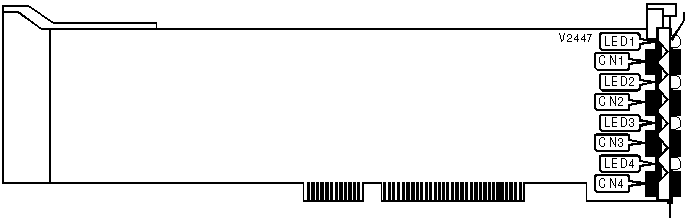

CONNECTIONS | |||
Function |
Label |
Function |
Label |
Cluster port 1 |
CN1 |
Cluster port 3 |
CN3 |
Cluster port 2 |
CN2 |
Cluster port 4 |
CN4 |
DIAGNOSTIC LED(S) |
The function of the LEDs is unidentified. |
