SOUNDBLASTER 16 WAVEFFECTS (CT4171)

Card Type

Sound card

Chip Set

Creative Technology

I/O Options

Game/MIDI port, line in, microphone in (2), speaker/line out, Audio in CD-ROM (2), PC speaker connector

Card Size

Half-length, full-height card

Data Bus

16-bit ISA

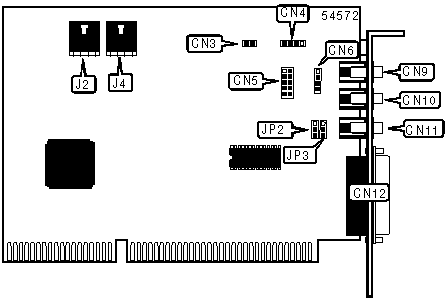

CONNECTIONS

Function

Label

Function

Label

Audio in CD-ROM (ATAPI)

J2

Microphone in internal

CN6

Audio in CD-ROM (AUX)

J4

Line in

CN9

PC speaker connector

CN3

Microphone in external

CN10

TAD connector

CN4

Speaker/line out

CN11

MB PRO connector

CN5

Game/MIDI port

CN12

USER CONFIGURABLE SETTINGS

Function

JP2

JP3

Speaker out

Pins 2 & 3 closed

Pins 2 & 3 closed

Line out

Pins 1 & 2 closed

Pins 1 & 2 closed
