CREATIVE LABS, INC.

SOUNDBLASTER 16 PRO CSP (CT2290, CT2299, CT2291)

SOUNDBLASTER 16 PRO (CT2290, CT2299, CT2291)

Card Type

Sound card

Chip Set

Creative Technology

Maximum Onboard Memory

None

I/O Options

CD-ROM interfaces (2), microphone connector, line in connector, line out connector, speaker out connector, game/MIDI port, PC internal speaker, CD-ROM audio in connectors (2), feature connector

Data Bus

16-bit ISA

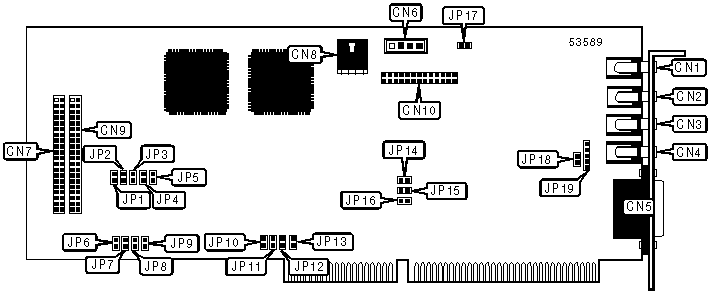

CONNECTIONS

Function

Label

Function

Label

Line in connector

CN1

Panasonic CD-ROM interface

CN7

Microphone connector

CN2

CD-ROM audio in connector

CN8

Line out connector

CN3

CD-ROM interface

CN9

Speaker out connector

CN4

Feature connector

CN10

Game/MIDI port

CN5

PC internal speaker

JP17

CD-ROM audio in connector

CN6



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured – do not alter

JP6

Unidentified

»

Factory configured – do not alter

JP9

Unidentified

»

MP-401 enabled

JP10

Closed



MP-401 disabled

JP10

Open

»

MP-401 I/O address select 330

JP11

Closed



MP-401 I/O address select 300

JP11

Open

»

Joystick enabled

JP16

Closed



Joystick disabled

JP16

Open

»

Factory configured – do not alter

JP18

Unidentified

»

Factory configured – do not alter

JP19

Unidentified

AUDIO I/O ADDRESS SELECTION

Address

JP12

JP13

»

220h

Closed

Closed



240h

Open

Closed



260h

Closed

Open

CSP CHIP SELECTION

Setting

JP14

JP15

Enabled

Open

Open

Disabled

Closed

Closed

IDE PORT SELECTION

Port

JP7

JP8



Secondary

Open

Closed

»

Tertiary

Closed

Open



Quaternary

Open

Open

IDE INTERRUPT SELECTION

IRQ

JP1

JP2

JP3

JP4

JP5



10

Closed

Open

Open

Open

Open

»

11

Open

Closed

Open

Open

Open



12

Open

Open

Closed

Open

Open



14

Open

Open

Open

Closed

Open



15

Open

Open

Open

Open

Closed
