Card Type	Sound card
Chip Set	Creative Technology
Maximum Onboard Memory	None
I/O Options	Line in connector, microphone in connector, line out connector, speaker out connector, game/MIDI port, CD-ROM audio in connector, CD-ROM interfaces (3), PC internal speaker
Data Bus	16-bit ISA

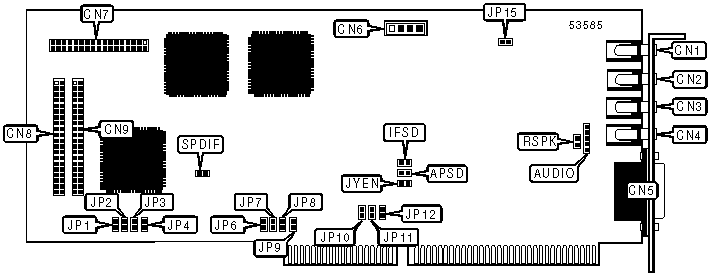

CONNECTIONS
Function	Label	Function	Label
Line in connector	CN1	CD-ROM audio in connector	CN6
Microphone connector	CN2	Sony CD-ROM interface	CN7
Line out connector	CN3	Panasonic CD-ROM interface	CN8
Speaker out connector	CN4	Mitsumi CD-ROM interface	CN9
Game/MIDI port	CN5	PC internal speaker	JP15

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured – do not alter	AUDIO	Unidentified
	MP-401 I/O address select 330	JP8	Closed
	MP-401 I/O address select 300	JP8	Open
»	Factory configured – do not alter	RSPK	Unidentified
»	Factory configured – do not alter	SPDIF	Unidentified

CD-ROM SELECTION
Type	JP1	JP2	JP3	JP4
Creative	Open	Open	Open	Closed
Sony	Open	Open	Closed	Open
Mitsumi	Open	Closed	Open	Open
Disabled	Closed	Open	Open	Open

MITSUMI CD-ROM INTERRUPT SELECTION
IRQ		JP10	JP11	JP12
	3	Open	Open	Closed
	10	Open	Closed	Open
»	11	Closed	Open	Open

JOYSTICK SELECTION
Setting	JP9	JYEN
Enabled	Closed	Closed
Disabled	Open	Open

AUDIO I/O ADDRESS SELECTION
Address		JP6	JP7
»	220	Closed	Closed
	240	Open	Closed
	260	Closed	Open
	280	Open	Open

CSP CHIP SELECTION
Setting	APSD	IFSD
Enabled	Open	Open
Disabled	Closed	Closed
