CREATIVE LABS
SOUNDBLASTER 16 MULTICD
|
Card Type |
Sound card |
|
Chip Set |
Creative Labs |
|
I/O Options |
CD-ROM interface (3), Game/MIDI port, wavetable, line in, line out, microphone in, speaker/line out, Audio in-CD-ROM, PC speaker connector |
|
Data Bus |
16-bit ISA |
|
Card Size |
Three-quarter length, full-height card |
|

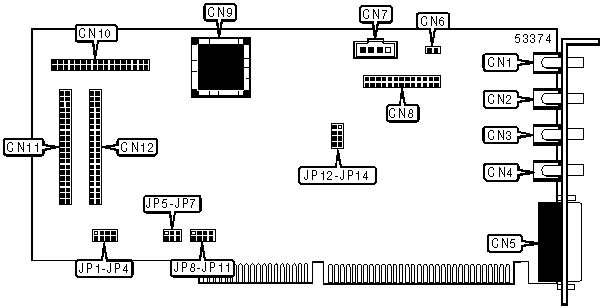

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line in |
CN1 |
Audio in CD-ROM (unidentified) |
CN7 |
|
Microphone jack |
CN2 |
Wave Blaster connector |
CN8 |
|
Line out |
CN3 |
Advanced signal processor socket |
CN9 |
|
Speaker/Line out |
CN4 |
CD-ROM interface (Sony) |
CN10 |
|
Game/MIDI port |
CN5 |
CD-ROM interface (Creative) |
CN11 |
|
PC Speaker connector |
CN6 |
CD-ROM interface (Mitsumi) |
CN12 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
MPU 401 Port enabled |
JP8 |
Closed |
|
MPU 401 Port disabled |
JP8 |
Open |
|
Factory configured - do not alter |
J12 |
Unidentified |
|
Factory configured - do not alter |
J13 |
Unidentified |
|
Game/MIDI port enabled |
JP14 |
Closed |
|
Game/MIDI port disabled |
JP14 |
Open |
|
IDE INTERFACE SELECT | ||||
|
Function |
JP1 |
JP2 |
JP3 |
JP4 |
|
IDE interface (Creative) enabled |
Closed |
Open |
Open |
Open |
|
IDE interface (Sony) enabled |
Open |
Closed |
Open |
Open |
|
IDE interface (Mitsumi) enabled |
Open |
Open |
Closed |
Open |
|
Disable all IDE interfaces |
Open |
Open |
Open |
Closed |
|
CD-ROM IRQ SELECT | |||
|
Address |
JP5 |
JP6 |
JP7 |
|
IRQ 3 |
Open |
Open |
Closed |
|
IRQ 10 |
Open |
Closed |
Open |
|
IRQ 11 |
Closed |
Open |
Open |
|
Disabled |
Open |
Open |
Open |
|
BASE I/O ADDRESS OF MPU-401 UART PORT | |
|
Base I/O Address |
JP9 |
|
330h |
Closed |
|
300h |
Open |
|
BASE I/O ADDRESS OF AUDIO INTERFACE | ||
|
Base I/O Address |
JP10 |
JP11 |
|
220h |
Closed |
Closed |
|
240h |
Open |
Closed |
|
260h |
Closed |
Open |
|
280h |
Open |
Open |
