DECISION COMPUTER INTERNATIONAL CO., LTD.

ADVANCE A/D-D/A DIGITAL I/O CARD

Card Type

Data acquisition

Chipset

Signal Processing Technologies HADC674Z

I/O Options

Analog/digital I/O

Data Bus

8-bit ISA

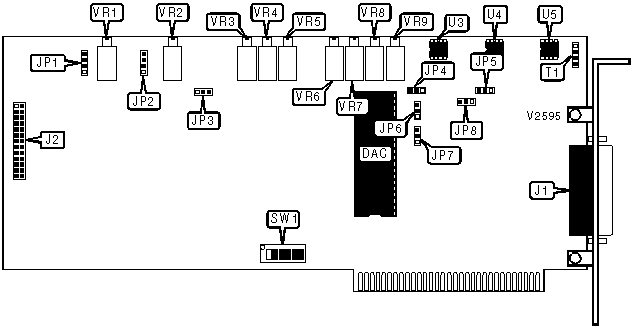

CONNECTIONS

Function

Label

Function

Label

Analog/digital I/O (see pinout below)

J1

Analog-to-digital negative bipolar offset voltage

VR3

Analog/digital I/O (see pinout below)

J2

Analog-to-digital positive bipolar offset voltage

VR4

Unidentified

T1

Analog-to-digital unipolar offset voltage

VR5

Unidentified

U3

Buffer gain voltage

VR6

Unidentified

U4

U3 offset voltage

VR7

Unidentified

U5

U4 offset voltage

VR8

Digital-to-analog channel 1 voltage

VR1

U5 offset voltage

VR9

Digital-to-analog channel 2 voltage

VR2



J1 PINOUT (SINGLE-ENDED)

Function

Pin

Function

Pin

+12V DC power

1

-12V DC power

14

Digital-to-analog channel 2 output

2

Digital-to-analog channel 1 output

15

Ground

3

Analog-to-digital channel 15

16

Analog-to-digital channel 14

4

Analog-to-digital channel 13

17

Analog-to-digital channel 12

5

Analog-to-digital channel 11

18

Analog-to-digital channel 10

6

Analog-to-digital channel 9

19

Analog-to-digital channel 8

7

Analog-to-digital channel 7

20

Analog-to-digital channel 6

8

Analog-to-digital channel 5

21

Analog-to-digital channel 4

9

Analog-to-digital channel 3

22

Analog-to-digital channel 2

10

Analog-to-digital channel 1

23

Analog-to-digital channel 0

11

Ground

24

Ground

12

-5V DC power

25

+5V DC power

13



J1 PINOUT (DIFFERENTIAL)

Function

Pin

Function

Pin

+12V DC power

1

-12V DC power

14

Digital-to-analog channel 2 output

2

Digital-to-analog channel 1 output

15

Ground

3

Analog-to-digital negative channel 7

16

Analog-to-digital positive channel 7

4

Analog-to-digital negative channel 6

17

Analog-to-digital positive channel 6

5

Analog-to-digital negative channel 5

18

Analog-to-digital positive channel 5

6

Analog-to-digital negative channel 4

19

Analog-to-digital positive channel 4

7

Analog-to-digital negative channel 3

20

Analog-to-digital positive channel 3

8

Analog-to-digital negative channel 2

21

Analog-to-digital positive channel 2

9

Analog-to-digital negative channel 1

22

Analog-to-digital positive channel 1

10

Analog-to-digital negative channel 0

23

Analog-to-digital positive channel 0

11

Ground

24

Ground

12

-5V DC power

25

+5V DC power

13



J2 PINOUT

Function

Pin

Function

Pin

+12V DC power

1

Digital channel 2 bit 1

14

Ground

2

Digital channel 2 bit 2

15

+12V DC power

3

Digital channel 2 bit 3

16

Ground

4

Digital channel 2 bit 4

17

Digital channel 1 bit 0

5

Digital channel 2 bit 5

18

Digital channel 1 bit 1

6

Digital channel 2 bit 6

19

Digital channel 1 bit 2

7

Digital channel 2 bit 7

20

Digital channel 1 bit 3

8

Chip Select 1

21

Digital channel 1 bit 4

9

Chip Select 2

22

Digital channel 1 bit 5

10

+5V DC power

23

Digital channel 1 bit 6

11

Ground

24

Digital channel 1 bit 7

12

-12V DC power

25

Digital channel 2 bit 0

13

Ground

26

ANALOG-TO-DIGITAL VOLTAGE RANGE

Setting

JP4

JP6

JP7



0V to 10V

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



0V to 20V

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

»

-10V to 10V

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



-20V to 20V

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



Set by VR3 - VR5

Pins 2 & 3 closed

N/A

N/A

DIGITAL-TO-ANALOG CHANNEL 1 VOLTAGE

Setting

JP1

JP4



0V to 10V

Pins 3 & 4 closed

Pins 1 & 2 closed

»

-10V to 10V

Pins 1 & 2 closed

Pins 1 & 2 closed



Set by VR1

N/A

Pins 2 & 3 closed

DIGITAL-TO-ANALOG CHANNEL 2 VOLTAGE

Setting

JP2

JP4



0V to 10V

Pins 3 & 4 closed

Pins 1 & 2 closed

»

-10V to 10V

Pins 1 & 2 closed

Pins 1 & 2 closed



Set by VR2

N/A

Pins 2 & 3 closed

SINGLE-ENDED/DIFFERENTIAL MODE

Setting

JP3

JP5

JP8

Single-ended

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Differential

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 3 & 4 closed

BASE I/O ADDRESS

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

000h

On

On

On

On

On

On

010h

On

On

On

On

On

Off

020h

On

On

On

On

Off

On

030h

On

On

On

On

Off

Off

040h

On

On

On

Off

On

On

3B0h

Off

Off

Off

On

Off

Off

3C0h

Off

Off

Off

Off

On

On

3D0h

Off

Off

Off

Off

On

Off

3E0h

Off

Off

Off

Off

Off

On

3F0h

Off

Off

Off

Off

Off

Off

Note:A total of 64 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW1/6 is the Least Significant Bit. The switches have the following decimal values: SW1/1=512, SW1/2=256, SW1/3=128, SW1/4=64, SW1/5=32, SW1/6=16. Turn off the switches and add the values of the switches that are off to obtain the correct address. (Off=1, On=0)
