COMPUDYNE
BOOMBOARD
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Volume, audio in, audio out, Game port |
|
Data Bus |
8-bit ISA |
|

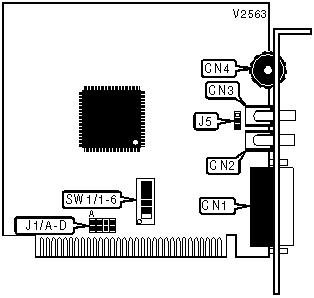

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Joystick port |
CN1 |
Volume |
CN4 |
|
Audio in |
CN2 |
Pro AudiSpectrum connector |
J5 |
|
Audio out |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
FM synthesizer enabled |
SW1/4 |
On |
|
FM synthesizer disabled |
SW1/4 |
Off |
|
Game port enabled |
SW1/5 |
On |
|
Game port disabled |
SW1/5 |
Off |
|
Audio compression enabled |
SW1/6 |
On |
|
Audio compression disabled |
SW1/6 |
Off |
|
BASE I/O ADDRESS SELECTION | |||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
|
$210 - $21F |
Off |
On |
On |
|
$220 - $22F |
On |
Off |
On |
|
$230 - $23F |
Off |
Off |
On |
|
$240 - $24F |
On |
On |
Off |
|
$250 - $25F |
Off |
On |
Off |
|
$260 - $26F |
Off |
Off |
Off |
|
INTERRUPT SELECTION | ||||
|
IRQ |
J1/A |
J1/B |
J1/C |
J1/D |
|
2 |
Closed |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed | |
|
7 |
Open |
Open |
Open |
Closed |
