DIAMOND FLOWER, INC.
MCT-MI0
|
Card Type |
Multi-I/O card |
|
Chip Set |
8250 |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Game port, parallel port, serial ports (2), Clock/Calendar external battery connector |
|
Data Bus |
8-bit ISA |
|
Floppy drives supported |
None |
|

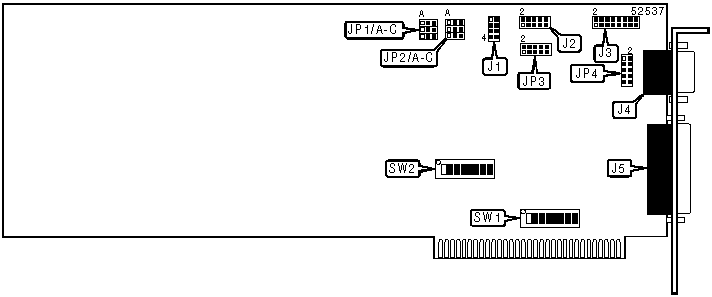

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Clock/Calendar external battery connector |
J1 |
Serial port 1 |
J4 |
|
Serial port 2 |
J2 |
Parallel port |
J5 |
|
Game port |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Serial port 2 DCD normal operation |
JP1/A |
Pins 1 & 2 closed |
|
Serial port 2 DCD forced true |
JP1/A |
Pins 2 & 3 closed | |
| » |
Serial port 2 DSR normal operation |
JP1/B |
Pins 1 & 2 closed |
|
Serial port 2 DSR forced true |
JP1/B |
Pins 2 & 3 closed | |
| » |
Serial port 2 CTS normal operation |
JP1/C |
Pins 1 & 2 closed |
|
Serial port 2 CTS forced true |
JP1/C |
Pins 2 & 3 closed | |
| » |
Serial port 1 DCD normal operation |
JP2/A |
Pins 1 & 2 closed |
|
Serial port 1 DCD forced true |
JP2/A |
Pins 2 & 3 closed | |
| » |
Serial port 1 DSR normal operation |
JP2/B |
Pins 1 & 2 closed |
|
Serial port 1 DSR forced true |
JP2/B |
Pins 2 & 3 closed | |
| » |
Serial port 1 CTS normal operation |
JP2/C |
Pins 1 & 2 closed |
|
Serial port 1 CTS forced true |
JP2/C |
Pins 2 & 3 closed | |
| » |
Serial port 1 enabled |
SW2/4 |
On |
|
Serial port 1 disabled |
SW2/4 |
Off | |
| » |
Serial port 1 enabled |
SW2/5 |
On |
|
Serial port 1 disabled |
SW2/5 |
Off | |
| » |
Parallel port enabled |
SW2/6 |
On |
|
Parallel port disabled |
SW2/6 |
Off | |
|
USER CONFIGURABLE SETTINGS (CON’T) | |||
|
Function |
Label |
Position | |
| » |
Game port enabled |
SW2/7 |
On |
|
Game port disabled |
SW2/7 |
Off | |
| » |
Clock/Calendar enabled |
SW2/8 |
On |
|
Clock/Calendar disabled |
SW2/8 |
Off | |
|
DTE SELECTION | ||
|
Setting |
JP4 |
JP3 |
|
TX |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
RX |
Pins 3 & 4 closed |
Pins 3 & 4 closed |
|
RTS |
Pins 5 & 6 closed |
Pins 5 & 6 closed |
|
CTS |
Pins 7 & 8 closed |
Pins 7 & 8 closed |
|
DTR |
Pins 9 & 10 closed |
Pins 9 & 10 closed |
|
DCE SELECTION | ||
|
Setting |
JP4 |
JP3 |
|
TX/RX |
Pins 1 & 3, 2 & 4 closed |
Pins 1 & 3, 2 & 4 closed |
|
RTS/CTS |
Pins 5 & 7, 6 & 8 closed |
Pins 5 & 7, 6 & 8 closed |
|
DTR |
Pins 9 & 10 closed |
Pins 9 & 10 closed |
|
PARALLEL PORT ADDRESS SELECTION | ||
|
Setting |
SW2/3 | |
| » |
LPTA |
Off |
|
LPTB |
On | |
|
SERIAL PORT 1 & 2 ADDRESS SELECTION | ||||
|
Serial port 1 |
Serial port 2 |
SW2/1 |
SW2/2 | |
| » |
COM1 (3F8h) |
COM2 (2F8h) |
On |
On |
|
COM2 (2F8h) |
COM2 (2F8h) |
Off |
On | |
|
COM3 (3E8h) |
COM4 (2E8h) |
On |
Off | |
|
CLOCK/CALANDER INTERRUPT SELECTION | |||
|
IRQ |
SW1/7 |
SW1/8 | |
| » |
IRQ2 |
Off |
On |
|
IRQ5 |
On |
Off | |
|
SERIAL PORT 1 INTERRUPT SELECTION | |||
|
IRQ |
SW1/3 |
SW1/4 | |
| » |
IRQ4 |
Off |
On |
|
IRQ3 |
On |
Off | |
|
SERIAL PORT 2 INTERRUPT SELECTION | |||
|
IRQ |
SW1/1 |
SW1/2 | |
| » |
IRQ3 |
On |
Off |
|
IRQ4 |
Off |
On | |
|
PARALLEL PORT INTERRUPT SELECTION | |||
|
IRQ |
SW1/5 |
SW1/6 | |
| » |
IRQ7 |
On |
Off |
|
IRQ5 |
Off |
On | |
