DIGI INTERNATIONAL, INC.

DIGIBOARD EPC/X EISA HOST ADAPTER

Card Type

Serial

Processor

IDT R3051

Processor Speed

20MHz

Chip Set

Unidentified

Maximum Onboard Memory

1280KB DRAM

I/O Options

Serial ports (2)

Data Bus

EISA

CONNECTIONS

Function

Label

Function

Label

Serial port 2 (RS-422)

CN1

Serial port 1 (RS-422)

CN2

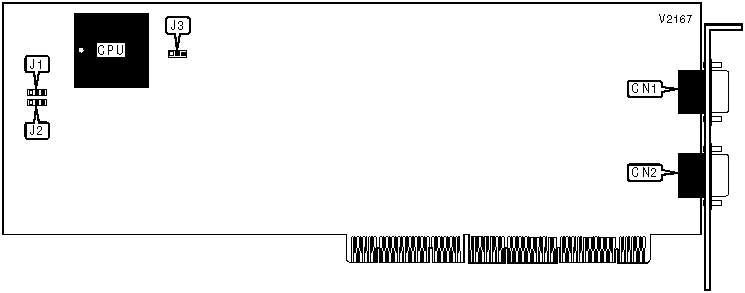

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

J1

Pins 1 & 2 closed

»

Factory configured - do not alter

J2

Pins 1 & 2 closed

»

Factory configured - do not alter

J3

Pins 1 & 2 closed
