DIGI INTERNATIONAL, INC.
DIGIBOARD EPC/X ISA HOST ADAPTER
|
Card Type |
Serial |
|
Processor |
IDT R3051 |
|
Processor Speed |
20MHz |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
1280KB DRAM |
|
I/O Options |
Serial ports (2) |
|
Data Bus |
16-bit ISA |
|

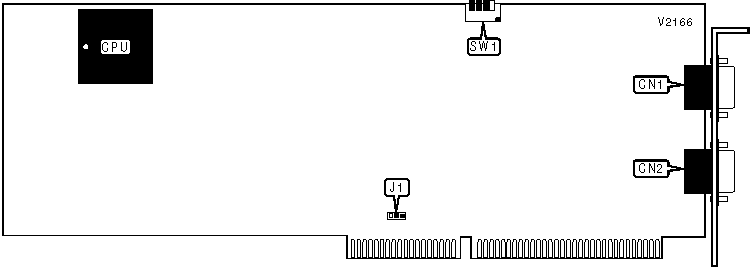

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial port 2 (RS-422) |
CN1 |
Serial port 1 (RS-422) |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
J1 |
Pins 1 & 2 closed |
| » |
Factory configured - do not alter |
SW1/4 |
Off |
|
BASE I/O ADDRESS | |||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
|
108h |
Off |
Off |
On |
|
118h |
Off |
On |
Off |
|
128h |
Off |
On |
On |
|
208h |
On |
Off |
Off |
|
228h |
On |
Off |
On |
|
308h |
On |
On |
Off |
|
328h |
On |
On |
On |
