CONNECT TECH, INC.

INTELLICON-NT960

Card Type

Serial card

Chip Set

Intel 80960 RISC

Maximum Onboard Memory

2MB SRAM/256KB Dual Ported RAM

I/O Options

Serial ports (128 on external modules)

Data Bus

16-bit ISA

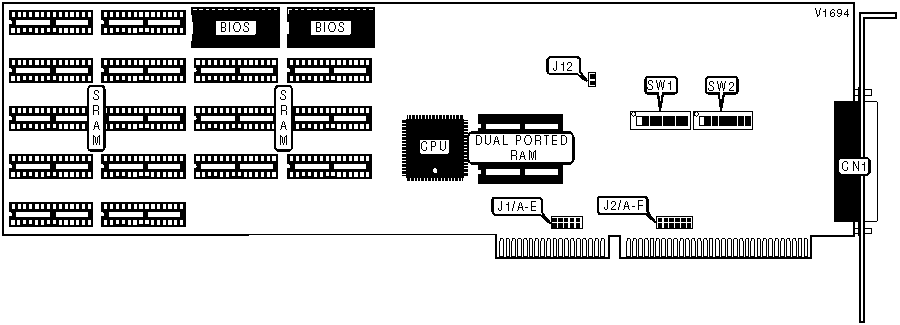

CONNECTIONS

Function

Label

37-pin serial port connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

8-bit data transfer mode enabled

J12

Open



16-bit data transfer mode enabled

J12

Closed

»

Factory configured - do not alter

SW2/6

On

»

Factory configured - do not alter

SW2/7

On

»

Factory configured - do not alter

SW2/8

On

I/O ADDRESS SELECTION

Address

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

»

300h

On

On

On

On

On

On

Off

Off



100h

On

On

On

On

On

On

Off

On



104h

Off

On

On

On

On

On

Off

On



108h

On

Off

On

On

On

On

Off

On



10Ch

Off

Off

On

On

On

On

Off

On



110h

On

On

Off

On

On

On

Off

On



3ECh

Off

Off

On

Off

Off

Off

Off

Off



3F0h

On

On

Off

Off

Off

Off

Off

Off



3F4h

Off

On

Off

Off

Off

Off

Off

Off



3F8h

On

Off

Off

Off

Off

Off

Off

Off



3FCh

Off

Off

Off

Off

Off

Off

Off

Off

Note: A total of 192 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. Switch SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: switch SW1/8=512, SW1/7=256, SW1/6=128, SW1/5=64, SW1/4=32, SW1/3=16, SW1/2=8, SW1/1=4. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

BASE ADDRESS SELECTION

Address

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

»

D0000h

On

On

On

Off

On



C0000h

On

On

On

On

On



C2000h

Off

On

On

On

On



C4000h

On

Off

On

On

On



C6000h

Off

Off

On

On

On



C8000h

On

On

Off

On

On



F6000h

Off

Off

On

Off

Off



F8000h

On

On

Off

Off

Off



FA000h

Off

On

Off

Off

Off



FC000h

On

Off

Off

Off

Off



FE000h

Off

Off

Off

Off

Off

Note: A total of 32 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. Switch SW1/5 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: switch SW1/5=8192, SW1/4=4096, SW1/3=2048, SW1/2=1024, SW1/1=512. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

INTERRUPT SELECTION

IRQ

J1/A

J1/B

J1/C

J1/D

J1/E

J2/A

»

10

Open

Open

Open

Open

Closed

Open



2/9

Open

Open

Open

Open

Open

Open



3

Open

Open

Open

Open

Open

Closed



4

Open

Open

Open

Open

Open

Open



5

Open

Open

Open

Open

Open

Open



6

Open

Open

Open

Open

Open

Open



7

Open

Open

Open

Open

Open

Open



11

Open

Open

Open

Closed

Open

Open



12

Open

Open

Closed

Open

Open

Open



14

Closed

Open

Open

Open

Open

Open



15

Open

Closed

Open

Open

Open

Open

INTERRUPT SELECTION (CON’T)

IRQ

J2/B

J2/C

J2/D

J2/E

J2/F

»

10

Open

Open

Open

Open

Open



2/9

Open

Open

Open

Open

Closed



3

Open

Open

Open

Open

Open



4

Closed

Open

Open

Open

Open



5

Open

Closed

Open

Open

Open



6

Open

Open

Closed

Open

Open



7

Open

Open

Open

Closed

Open



11

Open

Open

Open

Open

Open



12

Open

Open

Open

Open

Open



14

Open

Open

Open

Open

Open



15

Open

Open

Open

Open

Open

SRAM CONFIGURATION

Note: The exact configuration of memory is unidentified.

DUAL PORTED RAM CONFIGURATION

Note: The exact configuration of memory is unidentified.
