CONNECT TECH INC.
INTELLICON-6+2
|
Card Type |
Serial card |
|
Chipset Controller |
Zilog Z80B |
|
I/O Options |
Serial port(8) |
|
Maximum SRAM |
64KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|

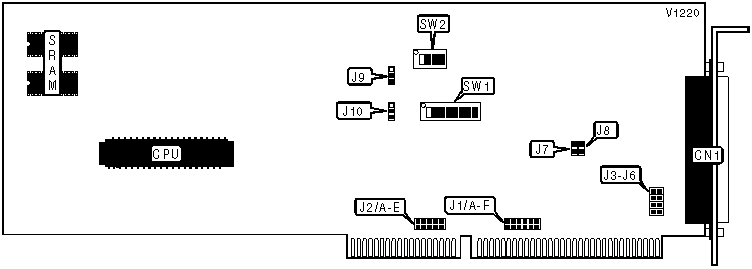

62-pin serial port connector |
CN1 |
|
BASE I/O ADDRESS SELECTION | |||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
300h |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
100h |
On |
Off |
On |
On |
On |
On |
On |
On | |
|
104h |
On |
Off |
On |
On |
On |
On |
On |
Off | |
|
108h |
On |
Off |
On |
On |
On |
On |
Off |
On | |
|
10Ch |
On |
Off |
On |
On |
On |
On |
Off |
Off | |
|
110h |
On |
Off |
On |
On |
On |
Off |
On |
On | |
|
3ECh |
Off |
Off |
Off |
Off |
Off |
On |
Off |
Off | |
|
3F0h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On | |
|
3F4h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off | |
|
3F8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On | |
|
3FCh |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 255 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. Switch SW1/1 is the Most Significant Bit and switch SW1/8 is the Least Significant Bit. The switches have the following decimal values: switch SW1/1=512, SW1/2=256, SW1/3=128, SW1/4=64, SW1/5=32, SW1/6=16, SW1/7=8, SW1/8=4. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | |||||||||
|
MEMORY BASE ADDRESS SELECTION | |||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 | |
| » |
D0000h - DFFFFh |
Off |
Off |
On |
Off |
|
A0000h - AFFFFh |
Off |
On |
Off |
On | |
|
B0000h - BFFFFh |
Off |
On |
Off |
Off | |
|
C0000h - CFFFFh |
Off |
Off |
On |
On | |
|
E0000h - EFFFFh |
Off |
Off |
Off |
On | |
|
INTERRUPT SELECTION | |||||||
|
IRQ |
J1/A |
J1/B |
J1/C |
J1/D |
J1/E |
J1/F | |
| » |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
2/9 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
14 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
INTERRUPT SELECTION (CON’T) | ||||||
|
IRQ |
J2/A |
J2/B |
J2/C |
J2/D |
J2/E | |
| » |
3 |
Open |
Open |
Open |
Open |
Open |
|
2/9 |
Open |
Open |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Closed | |
|
11 |
Open |
Open |
Open |
Closed |
Open | |
|
12 |
Open |
Open |
Closed |
Open |
Open | |
|
14 |
Open |
Closed |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open | |
|
PORT 7 RXD/CTS CONFIGURATION | ||
|
Mode |
J7 | |
| » |
RxD/CTS disabled |
Closed |
|
Normal operation |
Open | |
|
PORT 8 RXD/CTS CONFIGURATION | ||
|
Mode |
J8 | |
| » |
RxD/CTS disabled |
Open |
|
Normal operation |
Closed | |
|
PORT 7 CTS CONFIGURATION | ||
|
Setting |
J9 | |
| » |
External |
Pins 2 & 3 closed |
|
Internal |
Pins 1 & 2 closed | |
|
PORT 8 CTS CONFIGURATION | ||
|
Setting |
J10 | |
| » |
External |
Pins 2 & 3 closed |
|
Internal |
Pins 1 & 2 closed | |
|
PORT 7 RXD/CTS LINE LOAD CONFIGURATION | |||
|
Mode |
J3 (RxD) |
J4 (CTS) | |
| » |
R/C series load |
Open |
Open |
|
Resitive load |
Closed |
Closed | |
|
PORT 8 RXD/CTS LINE LOAD CONFIGURATION | |||
|
Mode |
J5 (RxD) |
J6 (CTS) | |
| » |
R/C series load |
Open |
Open |
|
Resitive load |
Closed |
Closed | |
