DIGI INTERNATIONAL, INC.

EISA C/X (VERSION 2)

Card Type

Serial controller

Chipset/Controller

80186

I/O Options

Serial ports (2)

Maximum DRAM

512KB

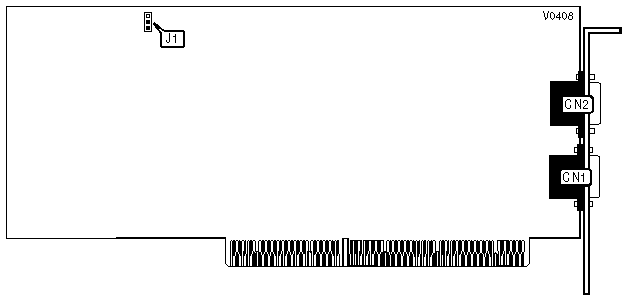

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

Serial port 2

CN2

FACTORY CONFIGURED SETTINGS

Jumper

Setting

J1

Pins 1 & 2 closed
