CREATIVE LABS, INC.
SOUNDBLASTER 1.0/1.5 (CT1320)
|
Card Type |
Sound card |
|
Chipset/Controller |
Creative Technology |
|
I/O Options |
Game/MIDI port, microphone jack, speaker, volume control |
|
Maximum DRAM |
N/A |
|
Data Bus |
8-bit ISA |
|

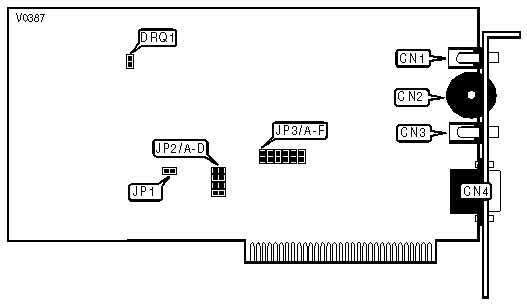

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Microphone jack |
CN1 |
Speaker jack |
CN3 |
|
Volume control |
CN2 |
Game/MIDI port |
CN4 |
|
INTERRUPT SELECT | |||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D | |
| » |
IRQ7 |
Closed |
Open |
Open |
Open |
|
IRQ2 |
Open |
Open |
Open |
Closed | |
|
IRQ3 |
Open |
Open |
Closed |
Open | |
|
IRQ5 |
Open |
Closed |
Open |
Open | |
|
I/O ADDRESS SELECT | |||||||
|
Address |
JP3/A |
JP3/B |
JP3/C |
JP3/D |
JP3/E |
JP3/F | |
| » |
220h |
Open |
Closed |
Open |
Open |
Open |
Open |
|
210h |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
230h |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
240h |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
250h |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
260h |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
GAME PORT | ||
|
Setting |
JP1 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
DMA CONFIGURATION | ||
|
Setting |
DRQ1 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
