AMERICAN DATA AQUISITION CORPORATION
5508LC REV. 1-USI=3
Card Type |
Data Aquisition |
Chip Set |
Unidentified |
Maximum Onboard Memory |
Unidentified |
I/O Options |
Analog input, digital input |
Hard Drives supported |
None |
Floppy drives supported |
None |
Data Bus |
8-bit ISA |
Card Size |
Half length |

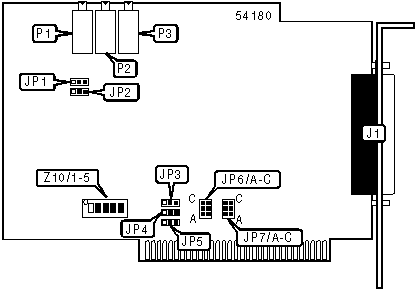

CONNECTIONS | |||
Function |
Label |
Function |
Label |
37-pin analog/digital signals connector |
J1 |
A/D converter range selector |
P2 |
Bipolar offset selector |
P1 |
Unipolar offset selector |
P3 |
GAIN SELECTION | |||
Function |
W1 |
W2 | |
» |
Programmable gain options: x1, x2, x5, x10 |
Open |
Open |
Programmable gain options: x1, x2, x4, x8 |
Closed |
Closed |
DMA CHANNEL SELECTION | |||||||
Channel |
JP6/A |
JP6/B |
JP6/C |
JP7/A |
JP7/B |
JP7/C | |
» |
Disabled |
Open |
Open |
Open |
Open |
Open |
Open |
1 |
Closed |
Open |
Open |
Closed |
Open |
Open | |
2 |
Open |
Closed |
Open |
Open |
Closed |
Open | |
3 |
Open |
Open |
Closed |
Open |
Open |
Closed |
A/D RANGE SELECTION | ||||
Polarity |
Voltage |
JP1 |
JP2 | |
» |
Bipolar |
+ 5V |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Unipolar |
+0-10V |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
Bipolar |
+ 10V |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
BASE I/O ADDRESS SELECTION | ||||||
Setting |
Z10/1 |
Z10/2 |
Z10/3 |
Z10/4 |
Z10/5 | |
000h |
Off |
Off |
Off |
Off |
Off | |
020h |
Off |
Off |
Off |
Off |
On | |
040h |
Off |
Off |
Off |
On |
Off | |
060h |
Off |
Off |
Off |
On |
On | |
080h |
Off |
Off |
On |
Off |
Off | |
» |
120h |
Off |
On |
Off |
Off |
On |
360h |
On |
On |
Off |
On |
On | |
380h |
On |
On |
On |
Off |
Off | |
3A0h |
On |
On |
On |
Off |
On | |
3C0h |
On |
On |
On |
On |
Off | |
3E0h |
On |
On |
On |
On |
On | |
Note: A total of 32 base address settings are available. The switches are a binary representation of the decimal memory addresses. Z10/1 is the Most Significant Bit and switch Z10/5 is the Least Significant Bit. The switches have the following decimal values: Z10/1=512, Z10/2=256, Z10/3=128, Z10/4=64, Z10/5=32. Turn off the switches and add the values of the switches to obtain the correct memory address. (On=1, Off=0) |
IRQ INTERRUPT SELECTION | |||
IRQ |
JP3 |
JP4 |
JP5 |
Disabled |
Open |
Open |
Open |
IRQ2 |
Open |
Open |
Pins 2 & 3 closed |
IRQ3 |
Open |
Pins 2 & 3 closed |
Open |
IRQ4 |
Pins 2 & 3 closed |
Open |
Open |
IRQ5 |
Open |
Open |
Pins 1 & 2 closed |
IRQ6 |
Open |
Pins 1 & 2 closed |
Open |
IRQ7 |
Pins 1 & 2 closed |
Open |
Open |
MISCELLANEOUS TECHNICAL NOTES |
Exact location of jumpers W1 & W2 is unidentified. |
