5500MF

AMERICAN DATA AQUISITION CORPORATION

5500MF

Card Type

Data Aquisition

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Analog input, digital input

Hard Drives supported

None

Floppy drives supported

None

Data Bus

8-bit ISA

Card Size

Half length

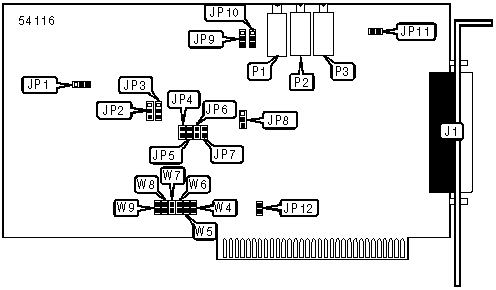

CONNECTIONS

Function

Label

Function

Label

37-pin analog/digital signals connector

J1

Bipolar offset selector

P2

A/D converter gain selector

P1

Unipolar offset selector

P3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»
1.02 MHz PIT clock 1 input

JP8

Pins 1 & 2 closed

External PIT clock 1 input

JP8

Pins 2 & 3 closed

»
Factory configured - do not alter

JP11

Open

»
A/D channel not sequenced

JP12

Open

A/D channel auto sequenced

JP12

Closed

DIGITAL INPUT/OUTPUT SELECTION

Setting

Label

Position

»
Digital I/O inputs (0-3)

JP4

Open

Digital I/O outputs (0-3)

JP4

Closed

»
Digital I/O inputs (4-7)

JP5

Open

Digital I/O outputs (4-7)

JP5

Closed

»
Digital I/O outputs (8-11)

JP6

Closed

Digital I/O inputs (8-11)

JP6

Open

»
Digital I/O outputs (12-15)

JP7

Closed

Digital I/O inputs (12-15)

JP7

Open

A/D TRIGGER SOURCE SELECTION

Source

JP1

Software trigger only

Open

External trigger

Pins 1 & 2 closed

PIT counter 0 trigger

Pins 2 & 3 closed

A/D RANGE SELECTION

Polarity

Voltage

JP2

JP3

JP9

JP10

»
Bipolar

+ 10V

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Bipolar

+ 5V

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Unipolar

0-10V

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Note: Pins designated are in the closed position

BASE I/O ADDRESS SELECTION

Setting

W9

W8

W7

W6

W5

W4

000h

Closed

Closed

Closed

Closed

Closed

Closed

010h

Closed

Closed

Closed

Closed

Closed

Open

020h

Closed

Closed

Closed

Closed

Open

Closed

030h

Closed

Closed

Closed

Closed

Open

Open

040h

Closed

Closed

Closed

Open

Closed

Closed

»
200h

Open

Closed

Closed

Closed

Closed

Closed

3B0h

Open

Open

Open

Closed

Open

Open

3C0h

Open

Open

Open

Open

Closed

Closed

3D0h

Open

Open

Open

Open

Closed

Open

3E0h

Open

Open

Open

Open

Open

Closed

3F0h

Open

Open

Open

Open

Open

Open

Note:
A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W9 is the Most Significant Bit and switch W4 is the Least Significant Bit. The switches have the following decimal values: W9=512, W8=256, W7=128, W6=64, W5=32, W4=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (Close=0, Open=1)

Card Type	Data Aquisition
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Analog input, digital input
Hard Drives supported	None
Floppy drives supported	None
Data Bus	8-bit ISA
Card Size	Half length

CONNECTIONS
Function	Label	Function	Label
37-pin analog/digital signals connector	J1	Bipolar offset selector	P2
A/D converter gain selector	P1	Unipolar offset selector	P3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	1.02 MHz PIT clock 1 input	JP8	Pins 1 & 2 closed
	External PIT clock 1 input	JP8	Pins 2 & 3 closed
»	Factory configured - do not alter	JP11	Open
»	A/D channel not sequenced	JP12	Open
	A/D channel auto sequenced	JP12	Closed

DIGITAL INPUT/OUTPUT SELECTION
Setting		Label	Position
»	Digital I/O inputs (0-3)	JP4	Open
	Digital I/O outputs (0-3)	JP4	Closed
»	Digital I/O inputs (4-7)	JP5	Open
	Digital I/O outputs (4-7)	JP5	Closed
»	Digital I/O outputs (8-11)	JP6	Closed
	Digital I/O inputs (8-11)	JP6	Open
»	Digital I/O outputs (12-15)	JP7	Closed
	Digital I/O inputs (12-15)	JP7	Open

A/D TRIGGER SOURCE SELECTION
Source	JP1
Software trigger only	Open
External trigger	Pins 1 & 2 closed
PIT counter 0 trigger	Pins 2 & 3 closed

A/D RANGE SELECTION
Polarity		Voltage	JP2	JP3	JP9	JP10
»	Bipolar	+ 10V	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2
	Bipolar	+ 5V	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	Unipolar	0-10V	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3
Note: Pins designated are in the closed position

BASE I/O ADDRESS SELECTION
Setting		W9	W8	W7	W6	W5	W4
	000h	Closed	Closed	Closed	Closed	Closed	Closed
	010h	Closed	Closed	Closed	Closed	Closed	Open
	020h	Closed	Closed	Closed	Closed	Open	Closed
	030h	Closed	Closed	Closed	Closed	Open	Open
	040h	Closed	Closed	Closed	Open	Closed	Closed
»	200h	Open	Closed	Closed	Closed	Closed	Closed
	3B0h	Open	Open	Open	Closed	Open	Open
	3C0h	Open	Open	Open	Open	Closed	Closed
	3D0h	Open	Open	Open	Open	Closed	Open
	3E0h	Open	Open	Open	Open	Open	Closed
	3F0h	Open	Open	Open	Open	Open	Open
Note: A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W9 is the Most Significant Bit and switch W4 is the Least Significant Bit. The switches have the following decimal values: W9=512, W8=256, W7=128, W6=64, W5=32, W4=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (Close=0, Open=1)
