AVM TECHNOLOGY, INC.

APEX

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

64MB (EDO supported)

I/O Options

Line in, microphone in, line out, game/MIDI port, CD/auxiliary input, direct MIDI output

Data Bus

16-bit ISA

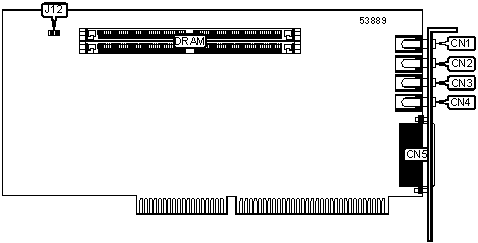

CONNECTIONS

Function

Label

Function

Label

Direct MIDI output

CN1

Microphone in/line in

CN4

Line out

CN2

Game/MIDI port

CN5

CD/auxiliary input

CN3



DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(1) 256K x 36

None

4MB

(1) 1M x 36

None

5MB

(1) 1M x 36

(1) 256K x 36

8MB

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

None

32MB

(1) 8M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

36MB

(1) 1M x 36

(1) 8M x 36

48MB

(1) 4M x 36

(1) 8M x 36

64MB

(1) 8M x 36

(1) 8M x 36

Note: The location of banks 0 & 1 is unidentified. Card accepts EDO memory. Banks are interchangeable.

DRAM JUMPER CONFIGURATION

Setting

J12

»

SIMMs installed

Closed



SIMMs not installed

Open

Note: If jumper is open, the 2MB ROM set is disabled.
