ACER, INC.

S611

Card Type

Sound card

Chip Set

Unidentified

I/O Options

CD-ROM ATAPI interface, game/MIDI port, microphone in, line in, speak/line out, CD-audio in (3), wavetable

Data Bus

16-bit ISA

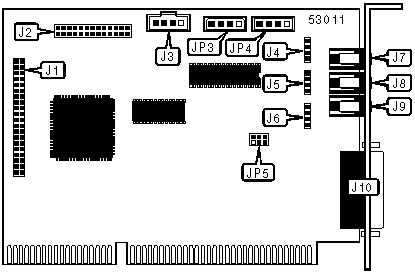

CONNECTIONS

Function

Label

Function

Label

ATAPI CD-ROM connector

J1

Line in phonejack

J7

Wavetable

J2

Microphone in phonejack

J8

Audio in - CD-ROM (Sony)

J3

Line out phonejack

J9

Line in

J4

Game/MIDI port

J10

Microphone in

J5

Audio in - CD-ROM (Creative)

JP3

Line out

J6

Audio in - CD-ROM (Mitsumi)

JP4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Speak out

JP5

Pins 3 & 5, 4 & 6 closed



Line out

JP5

Pins 1 & 3, 2 & 4 closed
