ACQUTEK CORPORATION

PA-DA12, PA-DA16

Card Type

Data acquisition

Chipset

Unidentified

I/O Options

Analog output

Data Bus

8/16 bit ISA

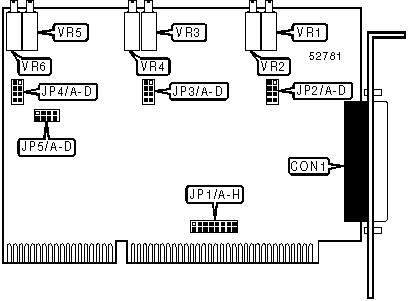

CONNECTIONS

Function

Label

Function

Label

Analog output (see pinout below)

CON1

D/A converter 2 offset selector

VR4

D/A converter 1 range selector

VR1

D/A converter 3 range selector

VR5

D/A converter 1 offset selector

VR2

D/A converter 3 offset selector

VR6

D/A converter 2 range selector

VR3



CON1 PINOUT

Function

Pin

Function

Pin

D/A 1 voltage ground

1

D/A 1 voltage output

20

D/A 2 voltage ground

2

D/A 2 voltage output

21

D/A 3 voltage ground

3

D/A 3 voltage output

22

Not used

4-10

Not used

23-28

D/A 1 current ground

11

D/A 1 current output

29

D/A 2 current ground

12

D/A 2 current output

30

D/A 3 current ground

13

D/A 3 current output

31

Not used

14-19

Not used

32-37

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP2/D

Open

»

Factory configured - do not alter

JP3/D

Open

»

Factory configured - do not alter

JP4/D

Open

»

Factory configured - do not alter

JP5/A

Unidentified

»

Factory configured - do not alter

JP5/B

Unidentified

»

Factory configured - do not alter

JP5/C

Unidentified

»

Factory configured - do not alter

JP5/D

Unidentified

BASE I/O ADDRESS SELECTION

Setting

JP1/A

JP1/B

JP1/C

JP1/D

JP1/E

JP1/F

JP1/G

JP1/H



000h

Closed

Closed

Closed

Closed

Closed

Closed

Closed

Closed



010h

Closed

Closed

Closed

Closed

Closed

Closed

Closed

Open



020h

Closed

Closed

Closed

Closed

Closed

Closed

Open

Closed



030h

Closed

Closed

Closed

Closed

Closed

Closed

Open

Open



040h

Closed

Closed

Closed

Closed

Closed

Open

Closed

Closed

»

2E0h

Closed

Closed

Open

Closed

Open

Open

Open

Closed



FB0h

Open

Open

Open

Open

Open

Closed

Open

Open



FC0h

Open

Open

Open

Open

Open

Open

Closed

Closed



FD0h

Open

Open

Open

Open

Open

Open

Closed

Open



FE0h

Open

Open

Open

Open

Open

Open

Open

Closed



FF0h

Open

Open

Open

Open

Open

Open

Open

Open

Note: A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. JP1/A is the Most Significant Bit and jumper JP1/H is the Least Significant Bit. The jumpers have the following decimal values: JP1/A=2048, JP1/B=1024, JP1/C=512, JP1/D=256, JP1/E=128, JP1/F=64, JP1/G=32, JP1/H=16. Open the jumpers and add the values of the jumpers that are open to obtain the correct memory address. (Open=1, Closed=0)

OUTPUT VOLTAGE 1 SELECTION

Setting

JP2/A

JP2/B

JP2/C

0V to 5V

Open

Open

Closed

0V to 10V

Open

Closed

Open

-5V to 5V

Closed

Open

Closed

-10V to 10V

Closed

Closed

Open

OUTPUT VOLTAGE 2 SELECTION

Setting

JP3/A

JP3/B

JP3/C

0V to 5V

Open

Open

Closed

0V to 10V

Open

Closed

Open

-5V to 5V

Closed

Open

Closed

-10V to 10V

Closed

Closed

Open

OUTPUT VOLTAGE 3 SELECTION

Setting

JP4/A

JP4/B

JP4/C

0V to 5V

Open

Open

Closed

0V to 10V

Open

Closed

Open

-5V to 5V

Closed

Open

Closed

-10V to 10V

Closed

Closed

Open
