AST RESEARCH, INC.

MEGAPLUS II

Card Type

Multi-I/O card

Chip Set

8250

Maximum Onboard Memory

Unidentified

I/O Options

Parallel port, serial port, DTE connector, DCE connector, 62-pin connector

Data Bus

8-bit ISA

Floppy drives supported

None

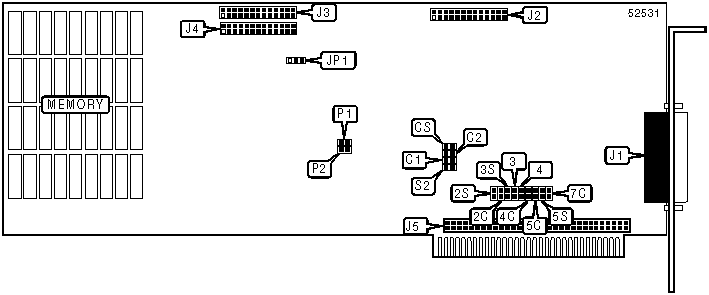

CONNECTIONS

Function

Label

Function

Label

Parallel port

J1

DCE connector

J4

Parallel printer port

J2

62-pin connector

J5

DTE connector

J3



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

C1

Unidentified

»

Factory configured - do not alter

C2

Unidentified

»

Factory configured - do not alter

CS

Unidentified



DTE enabled

JP1

Pins 2 & 3 closed



DCE enabled

JP1

Pins 1 & 2 closed

»

Factory configured - do not alter

P1

Unidentified

»

Factory configured - do not alter

P2

Unidentified



Serial port enabled

S2

Closed



Serial port disabled

S2

Open

INTERRUPT SELECTION

IRQ

2S

2C

3S

3

4

4C

5C

5S

7C

IRQ2

Closed

Open

Open

Open

Open

Open

Open

Open

Open

IRQ2(B)

Open

Closed

Open

Open

Open

Open

Open

Open

Open

IRQ3

Open

Open

Closed

Open

Open

Open

Open

Open

Open

IRQ3(B)

Open

Open

Open

Closed

Open

Open

Open

Open

Open

IRQ4

Open

Open

Open

Open

Closed

Open

Open

Open

Open

IRQ4(B)

Open

Open

Open

Open

Open

Closed

Open

Open

Open

IRQ5

Open

Open

Open

Open

Open

Open

Closed

Open

Open

IRQ5(B)

Open

Open

Open

Open

Open

Open

Open

Closed

Open

RAM CONFIGURATION

Note: The size and configuration of the memory is unidentified
