BEST UNION ELECTRONICS CO., LTD.

MPEG MOVIE CARD

Card Type

MPEG decoder

Video Chip Set

Unidentified

Highest Resolution Supported

1024 x 768

Maximum Video Memory

None

Data Bus

16-bit ISA

Video Types Supported

XVGA

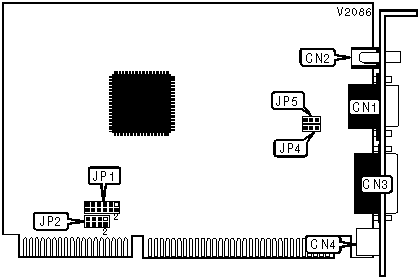

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port (VGA in)

CN1

VGA in/Audio out/TV A/V connector

CN3

Speaker out

CN2

S-video

CN4

DMA CHANNEL SELECTION

Channel

JP1



5

Pins 1 & 2, 7 & 8 closed

»

6

Pins 3 & 4, 9 & 10 closed



7

Pins 5 & 6, 11 & 12 closed

INTERRUPT SELECTION

IRQ

JP2

»

10

Pins 1 & 2 closed



11

Pins 3 & 4 closed



12

Pins 5 & 6 closed



15

Pins 7 & 8 closed

NTSC/PAL SELECTION

Setting

JP4

JP5

»

NTSC

Pins 1 & 2 closed

Pins 1 & 2 closed



PAL

Pins 2 & 3 closed

Pins 2 & 3 closed

Note: The exact location of pin 1 is unidentified.
