ADVANCED MICROCOMPUTER SYSTEMS, INC.
SUPER I/O-22
|
Card Type |
Multi I/O |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Serial port(2), Parallel port(2) via DB-37 intermediate connectors |
|
Maximum DRAM |
N/A |
|

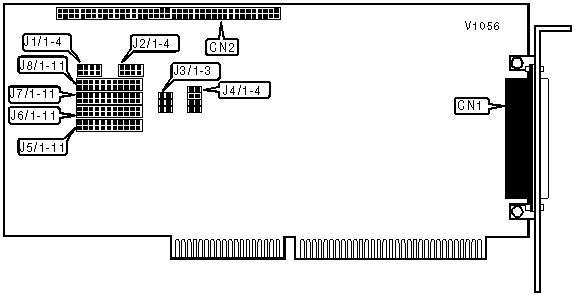

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port 1, Serial port 1 |
CN1 |
Parallel port 2, Serial port 2 |
CN2 |
|
SERIAL PORT 1 INTERRUPT | |||||||||||
|
IRQ |
J5/1 |
J5/2 |
J5/3 |
J5/4 |
J5/5 |
J5/6 |
J5/7 |
J5/8 |
J5/9 |
J5/10 |
J5/11 |
|
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
Note: Interrupt settings for J5 shown. J7 uses identical configurations. J5 affects serial port 1 and J7 affects serial port 2. | |||||||||||
|
PARALLEL PORT 1 INTERRUPT | ||||
|
IRQ |
J1/1 |
J1/2 |
J1/3 |
J1/4 |
|
2 |
Closed |
Open |
Open |
Open |
|
5 |
Open |
Closed |
Open |
Open |
|
6 |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Closed |
|
Note: Interrupt settings for J1 shown, J2 uses identical settings. J1 affects port 1, J2 affects port 2 | ||||
|
PARALLEL PORT CONFIGURATION | ||||
|
Port 1 |
Port 2 |
J3/1 |
J3/2 |
J3/3 |
|
LPT1 |
LPT2 |
Closed |
Closed |
Open |
|
LPT1 |
LPT3 |
Closed |
Open |
Closed |
|
LPT2 |
LPT3 |
Open |
Closed |
Closed |
|
LPT1 |
Disabled |
Closed |
Open |
Open |
|
LPT2 |
Disabled |
Open |
Closed |
Open |
|
Disabled |
LPT3 |
Open |
Open |
Closed |
|
Disabled |
Disabled |
Open |
Open |
OPen |
|
SERIAL PORT CONFIGURATION | |||||
|
Port 1 |
Port 2 |
J4/1 |
J4/2 |
J4/3 |
J4/4 |
|
COM2 |
COM4 |
Open |
Closed |
Open |
Closed |
|
COM1 |
COM3 |
Closed |
Open |
Closed |
Open |
|
COM3 |
COM4 |
Open |
Open |
Closed |
Closed |
|
COM2 |
COM3 |
Open |
Closed |
Closed |
Open |
|
COM1 |
COM2 |
Closed |
Closed |
Open |
Open |
|
Disabled |
COM4 |
Open |
Open |
Open |
Closed |
|
Disabled |
COM3 |
Open |
Open |
Closed |
Open |
|
COM2 |
Disabled |
Open |
Closed |
Open |
Open |
|
COM1 |
Disabled |
Closed |
Open |
Open |
Open |
|
Disabled |
Disabled |
Open |
Open |
Open |
Open |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J6/1-11 |
Not used |
|
J8/1-11 |
Not used |
