AZTECH LABS, INC.
SOUND GALAXY NX STEREO PRO
|
Card Type |
Sound |
|
Chipset Controller |
Aztech AZTSSPT0592 |
|
I/O Options |
CD-ROM interface (2), CD Audio in, game/MIDI port, Line in, Speaker out Microphone jack, Line out, Volume control |
|
Maximum DRAM |
N/A |
|

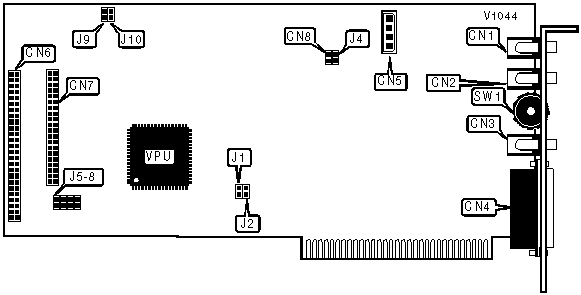

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
SCSI CD-ROM |
CN6 |
|
Microphone |
CN2 |
AT CD-ROM |
CN7 |
|
Line out |
CN3 |
PC speaker out |
CN8 |
|
Game/MIDI port |
CN4 |
Volume |
SW1 |
|
CD audio in |
CN5 | ||
|
PC SPEAKER AMPLIFICATION | ||
|
Setting |
J4 | |
| » |
Low amplification |
Open |
|
High amplification |
Closed | |
|
VIRTUAL PARALLEL PORT | |||
|
Setting |
J1 |
J2 | |
| » |
Enabled |
Closed |
Closed |
|
Disabled |
Open |
Open | |
|
Note: Address of virtual parallel port is 278h | |||
|
INTERRUPT SELECTION | |||||
|
IRQ |
J5 |
J6 |
J7 |
J8 | |
| » |
12 |
Open |
Open |
Closed |
Open |
|
4 |
Closed |
Open |
Open |
Open | |
|
11 |
Open |
Closed |
Open |
Open | |
|
15 |
Open |
Open |
Open |
Closed | |
|
BASE MEMORY ADDRESS | |||
|
Address |
J9 |
J10 | |
| » |
CA000h |
Open |
Open |
|
C8000h |
Open |
Closed | |
|
CE000h |
Closed |
Open | |
|
DE000h |
Closed |
Closed | |
