Category	Video
Video Types Supported	XVGA
Video Processor	ET-4000
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

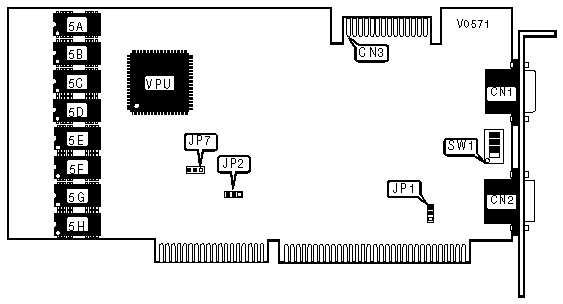

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA Feature connector	CN3
9-pin digital video port	CN2

DISPLAY MODE
Setting	JP1
Color	Pins 2 & 3 closed
Monochrome	Pins 1 & 2 closed

INTERRUPT STATUS SELECT
IRQ2	JP2
Disabled	Pins 1 & 2 closed
Enabled	Pins 2 & 3 closed

FACTORY CONFIGURED SETTING
Jumper	Setting
JP7	Pins 2 & 3 closed

ADAPTER PRIORITY SETTING
Setting	SW1/1	SW1/2	SW1/3	SW1/4
Primary adapter	Off	Off	Off	Off
Secondary adapter	Off	On	Off	Off

VIDEO MEMORY CONFIGURATION
Size	5D & 5H	5C & 5G	5A, 5B, 5E, 5F
256KB	(2) 44256	NONE	NONE
512KB	(2) 44256	(2) 44256	NONE
1024KB	(2) 44256	(2) 44256	(4) 44256
