ARNET CORPORATION

SMARTPORT PLUS

Card Type

I/O controller

Chipset/Controller

Intel

I/O Options

Serial ports (8 - 32)

Maximum DRAM

N/A

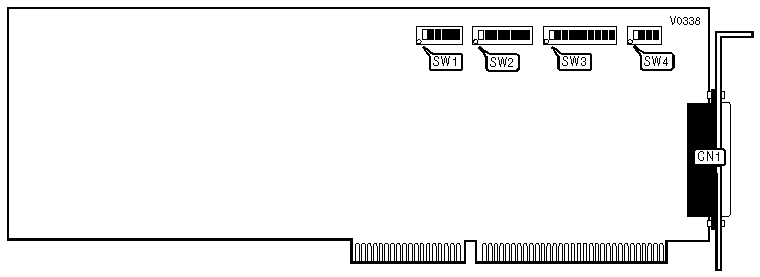

CONNECTIONS

Purpose

Location

DB-37 connector

CN1

Note:The DB-37 connector interfaces to an external connector box with 8 to 32 DB-25 ports.

INTERRUPT SELECT

IRQ

SW3/1

SW3/2

SW3/3

SW3/4

SW3/5

SW3/6

SW3/7

SW3/8

SW3/9

SW3/10

Dis.

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

2

On

Off

Off

Off

Off

Off

Off

Off

Off

Off

3

Off

On

Off

Off

Off

Off

Off

Off

Off

Off

4

Off

Off

On

Off

Off

Off

Off

Off

Off

Off

5

Off

Off

Off

On

Off

Off

Off

Off

Off

Off

6

Off

Off

Off

Off

On

Off

Off

Off

Off

Off

7

Off

Off

Off

Off

Off

On

Off

Off

Off

Off

10

Off

Off

Off

Off

Off

Off

On

Off

Off

Off

11

Off

Off

Off

Off

Off

Off

Off

On

Off

Off

12

Off

Off

Off

Off

Off

Off

Off

Off

On

Off

15

Off

Off

Off

Off

Off

Off

Off

Off

Off

On

I/O ADDRESS CONFIGURATION

Address

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

100h

On

On

On

On

Off

On

110h

Off

On

On

On

Off

On

120h

On

Off

On

On

Off

On

180h

On

On

On

Off

Off

On

190h

Off

On

On

Off

Off

On

1A0h

On

Off

On

Off

Off

On

1B0h

Off

Off

On

Off

Off

On

200h

On

On

On

On

On

Off

270h

Off

Off

Off

On

On

Off

280h

On

On

On

Off

On

Off

290h

Off

On

On

Off

On

Off

2A0h

On

Off

On

Off

On

Off

2B0h

Off

Off

On

Off

On

Off

2C0h

On

On

Off

Off

On

Off

2D0h

Off

On

Off

Off

On

Off

2E0h

On

Off

Off

Off

On

Off

2F0h

Off

Off

Off

Off

On

Off

300h

On

On

On

On

Off

Off

310h

Off

On

On

On

Off

Off

340h

On

On

Off

On

Off

Off

MEMORY SIZE/LOCATION CONFIGURATION

Size of Dual Port

Location

SW4/1

SW4/2

SW4/3

SW4/4

64KB

Determined by SW2

Off

Off

Off

Off

32KB

SW2 + 0

On

On

On

Off

32KB

SW2 + 32KB (8000h)

Off

On

On

Off

16KB

SW2 + 0

On

On

On

On

16KB

SW2 + 16KB (4000h)

On

Off

On

On

16KB

SW2 + 32KB (8000h)

Off

On

On

On

16KB

SW2 + 48KB (C000h)

Off

Off

On

On

MEMORY ADDRESS CONFIGURATION

Address

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

SW2/6

SW2/7

SW2/8

080000h

On

On

On

Off

On

On

On

On

090000h

Off

On

On

Off

On

On

On

On

0C0000h

On

On

Off

Off

On

On

On

On

0D0000h

Off

On

Off

Off

On

On

On

On

0A0000h

On

Off

On

Off

On

On

On

On

180000h

On

On

On

Off

Off

On

On

On

800000h

On

On

On

On

On

On

On

Off

810000h

Off

On

On

On

On

On

On

Off

C00000h

On

On

On

On

On

On

Off

Off

C10000h

Off

On

On

On

On

On

Off

Off

C20000h

On

Off

On

On

On

On

Off

Off

E00000h

On

On

On

On

On

Off

Off

Off

E10000h

Off

On

On

On

On

Off

Off

Off

E20000h

On

Off

On

On

On

Off

Off

Off

F00000h

On

On

On

On

Off

Off

Off

Off

F10000h

Off

On

On

On

Off

Off

Off

Off

F20000h

On

Off

On

On

Off

Off

Off

Off

F30000h

Off

Off

On

On

Off

Off

Off

Off

F40000h

On

On

Off

On

Off

Off

Off

Off

F50000h

Off

On

Off

On

Off

Off

Off

Off

F60000h

On

Off

Off

On

Off

Off

Off

Off

F70000h

Off

Off

Off

On

Off

Off

Off

Off

RECOMMENDED OPERATING SYSTEM CONFIGURATIONS

Operating System

Address Setting

I/O Address

Memory Address

IRQ

Memory Size

BOS/LAN, MBOS/5

Primary

2C0h

0C0000h

IRQ10

64KB & 0 Offset

BOS/LAN, MBOS/5

Primary

2C0h

0C0000h

IRQ11

64KB & 0 Offset

BOS/LAN, MBOS/5

Primary

2C0h

0C0000h

IRQ12

64KB & 0 Offset

BOS/LAN, MBOS/5

Primary

2C0h

0C0000h

IRQ15

64KB & 0 Offset

BOS/LAN, MBOS/5

Alternate

2D0h

0D0000h

IRQ10

64KB & 0 Offset

BOS/LAN, MBOS/5

Alternate

2D0h

0D0000h

IRQ11

64KB & 0 Offset

BOS/LAN, MBOS/5

Alternate

2D0h

0D0000h

IRQ14

64KB & 0 Offset

BOS/LAN, MBOS/5

Alternate

2D0h

0D0000h

IRQ15

64KB & 0 Offset

Concurrent DOS 386

Primary

280h

F00000h

Not used

64KB & 0 Offset

Concurrent DOS 386

Alternate

2C0h

0D0000h

Not used

64KB & 0 Offset

DTM-PC MUMPS

Primary

340h

0D0000h

Not used

64KB & 0 Offset

DTM-PC MUMPS

Alternate

280h

0D0000h

Not used

64KB & 0 Offset

MSM-PC MUMPS

For board 1

100h

0A0000h

IRQ12

64KB & 0 Offset

MSM-PC MUMPS

For board 2

340h

0D0000h

IRQ11

64KB & 0 Offset

MSM-PC 386 MUMPS

For board 1

100h

F00000h

IRQ12

64KB & 0 Offset

MSM-PC 386 MUMPS

For board 2

340h

F10000h

IRQ11

64KB & 0 Offset

MSM-PC 386 MUMPS

For board 3

280h

F20000h

IRQ10

64KB & 0 Offset

MSM-PC 386 MUMPS

For board 4

240h

F30000H

IRQ15

64KB & 0 Offset

THEOS

For board 1

100h

FD0000h

IRQ5

64KB & 0 Offset

THEOS

For board 2

110h

FC0000h

IRQ7

64KB & 0 Offset

THEOS

For board 3

120h

FB0000h

IRQ3

64KB & 0 Offset

THEOS

For board 4

2C0h

FA0000h

IRQ4

64KB & 0 Offset

RECOMMENDED OPERATING SYSTEM CONFIGURATIONS (CONTINUED)

Operating System

Address Setting

I/O Address

Memory Address

IRQ

Memory Size

UNIX (COM3)

Primary

100h

F00000h

Not used

64KB & 0 Offset

UNIX (COM3)

Alternate

280h

F10000h

Not used

64KB & 0 Offset

UNIX (COM4)

Primary

180h

F20000h

Not used

64KB & 0 Offset

UNIX (COM4)

Alternate

300h

F30000h

Not used

64KB & 0 Offset

UNIX (COM5)

Primary

1A0h

F40000h

Not used

64KB & 0 Offset

UNIX (COM5)

Alternate

2A0h

F50000h

Not used

64KB & 0 Offset

UNIX (COM6)

Primary

1B0h

F60000h

Not used

64KB & 0 Offset

UNIX (COM6)

Alternate

2B0h

F70000h

Not used

64KB & 0 Offset

VM/386

N/A

300h

F00000h

IRQ5

64KB & 0 Offset
