Chipset	Winbond
Data Bus	16-bit ISA
Card Size	Full height, half length
Hard Drives Supported	Two IDE(AT) devices
Floppy Drives Supported	Unidentified

CONNECTIONS

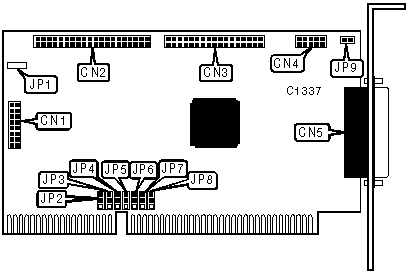

Function	Label	Function	Label
16-pin game port	CN1	25-pin parallel port - external	CN5
40-pin IDE(AT) connector	CN2	Drive active LED	JP1
34-pin cable connector - floppy drive	CN3	IDE IOCHRDY signal	JP9
10-pin serial port 1 - internal	CN4
Note:The location of the second serial port is unidentified.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Serial port 1 enabled	JP2	Pins 1 & 2 closed
	Serial port 1 disabled	JP2	Pins 2 & 3 closed
»	Game port enabled	JP3	Pins 1 & 2 closed
	Game port disabled	JP3	Pins 2 & 3 closed
»	Floppy interface enabled	JP4	Pins 1 & 2 closed
	Floppy interface disabled	JP4	Pins 2 & 3 closed
»	Parallel port address is LPT2:	JP5	Pins 1 & 2 closed
	Parallel port address is LPT3:	JP5	Pins 2 & 3 closed
»	IDE(AT) interface enabled	JP6	Pins 1 & 2 closed
	IDE(AT) interface disabled	JP6	Pins 2 & 3 closed
»	Serial port 2 enabled	JP7	Pins 1 & 2 closed
	Serial port 2 disabled	JP7	Pins 2 & 3 closed
»	Hard drive is connected to IDE interface	JP8	Pins 1 & 2 closed
	Hard drive is not connected to IDE interface	JP8	Pins 2 & 3 closed
