WYSE TECHNOLOGY, INC.
WY-958 (PM2012A)
Data bus: 32-bit, EISA
Size: Three-quarter length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|

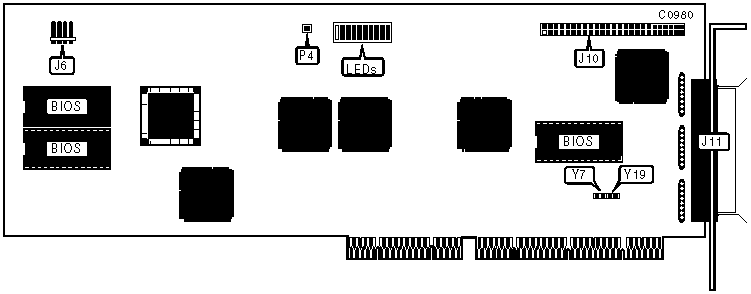

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-drive active LED |
J6 |
|
50-pin SCSI connector-internal |
J10 |
|
50-pin SCSI connector-external |
J11 |
|
10-piece LED |
LEDs |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory test button - do not alter |
P4 |
N/A |
| » |
Factory configured - do not alter |
Y7 |
Open |
| » |
Factory configured - do not alter |
Y19 |
Open |
|
SCSI BUS TERMINATION CONFIGURATION | ||
|
Internal Devices |
External Devices |
Terminator Status |
|
Installed |
Not installed |
Installed |
|
Not installed |
Installed |
Installed |
|
Installed |
Installed |
All three removed |
