Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

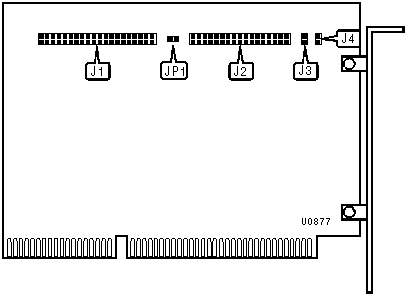

CONNECTIONS
Function	Location
40-pin IDE(AT) connector	J1
34-pin cable connector - floppy drive	J2
2-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function	Location	Setting
Floppy drive interface enabled	J3	closed
Floppy drive interface disabled	J3	open
IDE primary address is 3F0h	J4	open
IDE secondary address is 370h	J4	closed
