UNIDENTIFIED

SP-160

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE (AT) Interface drives and up to seven SCSI devices

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

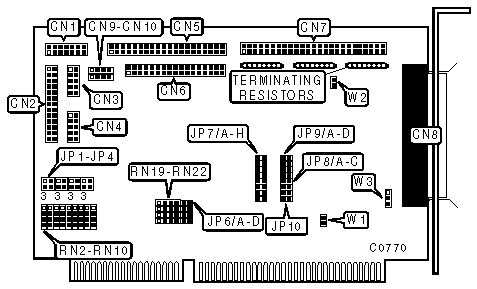

CONNECTIONS

Function

Location

Game port

CN1

25-pin parallel port

CN2

10-pin serial port 1

CN3

10-pin serial port 2

CN4

40-pin IDE (AT) interface connector

CN5

34-pin control cable connector - floppy drive

CN6

50-pin SCSI connector - internal

CN7

50-pin SCSI connector - external

CN8

4-pin connector - drive active LED (IDE)

CN9

4-pin connector - drive active LED (SCSI)

CN10

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive enabled

JP1

pins 1 & 2 closed



Floppy drive disabled

JP1

pins 3 & 4 closed

»

Factory configured - do not alter

JP4

n/a

»

AHA-1520 driver compatibility enabled

JP7/jumper A

open



6360 compatibility enabled

JP7/jumper A

closed

»

Factory configured - do not alter

JP7/jumper B

n/a

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Disconnect/reselect enabled

JP7/jumper C

closed



Disconnect/reselect disabled

JP7/jumper C

open

»

Synchronous negotiation enabled

JP7/jumper D

closed



Synchronous negotiation disabled

JP7/jumper D

open

»

Boot-up with INT19 enabled

JP7/jumper E

closed



Boot-up with INT19 disabled

JP7/jumper E

open

»

Factory configured - do not alter

JP7/jumper F

n/a

»

Factory configured - do not alter

JP7/jumper G

n/a

»

Factory configured - do not alter

JP7/jumper H

n/a

»

SCSI parity enabled

JP9/jumper D

open



SCSI parity disabled

JP9/jumper D

closed

»

SCSI address = 340h

JP10

open



SCSI address = 140h

JP10

closed

»

Factory configured - do not alter

W1

n/a

»

Factory configured - do not alter

W2

n/a

»

Factory configured - do not alter

W3

n/a

IDE PORT CONFIGURATION

Address

JP2

JP3

»

Primary

pins 1 & 2 closed

pins 1 & 2 closed



Secondary

pins 1 & 2 closed

pins 2 & 3 closed



Disabled

pins 2 & 3 closed

all pins open

SCSI INTERRUPT SELECT

IRQ

JP6/A

JP6/B

JP6/C

JP6/D

RN19

RN20

RN21

RN22

»

11

open

open

closed

open

not installed

installed

not installed

not installed



9

closed

open

open

open

not installed

not installed

not installed

installed



10

open

closed

open

open

not installed

not installed

installed

not installed



12

open

open

open

closed

installed

not installed

not installed

not installed

Note:RN19-RN22 are four-pin resistors.

BIOS ADDRESS - JP8

Address

Jumper A

Jumper B

Jumper C

»

D8000h

closed

closed

closed



C8000h

open

closed

closed



CC000h

closed

open

open



D0000h

closed

open

closed



D4000h

closed

closed

open



Disabled

open

open

closed

SCSI ID - JP9

ID#

Jumper A

Jumper B

Jumper C

»

ID7

closed

closed

closed



ID0

open

open

open



ID1

closed

open

open



ID2

open

closed

open



ID3

closed

closed

open



ID4

open

open

closed



ID5

closed

open

closed



ID6

open

closed

closed

SCSI ID

IRQ

JP6/A

JP6/B

JP6/C

JP6/D

RN19

RN20

RN21

RN22

»

IRQ11

open

open

closed

open

not installed

installed

not installed

not installed



IRQ9

closed

open

open

open

not installed

not installed

not installed

installed



IRQ10

open

closed

open

open

not installed

not installed

installed

not installed



IRQ12

open

open

open

closed

installed

not installed

not installed

not installed

PARALLEL PORT CONFIGURATION

LPT/Address

RN2

RN3

RN4

»

LPT2/378h

installed

not installed

not installed



LPT3/278h

not installed

installed

not installed



Disabled

not installed

not installed

installed

Note:RN2-RN4 are four-pin resistors.

SERIAL PORT 1 CONFIGURATION

COM/Address

RN8

RN9

RN10

»

COM1/3F8h

installed

not installed

not installed



COM3/3E8h

not installed

installed

not installed



Disabled

not installed

not installed

installed

Note:RN8-RN10 are four-pin resistors.

SERIAL PORT 2 CONFIGURATION

COM/Address

RN5

RN6

RN7

»

COM2/2F8h

installed

not installed

not installed



COM4/2E8h

not installed

installed

not installed



Disabled

not installed

not installed

installed

Note:RN5-RN7 are four-pin resistors.
