Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	None

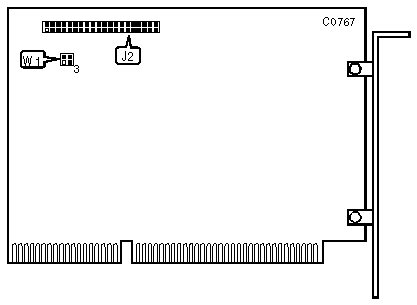

CONNECTIONS
Function	Location
40-pin IDE (AT) interface connector	J2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	DIRQ14 signal passed to host computer	W1	pins 3 & 4 closed
	Conner CP342/CP3022 drive installed	W1	pins 1 & 2 closed
